H2089-01

Active

Harwin Inc.

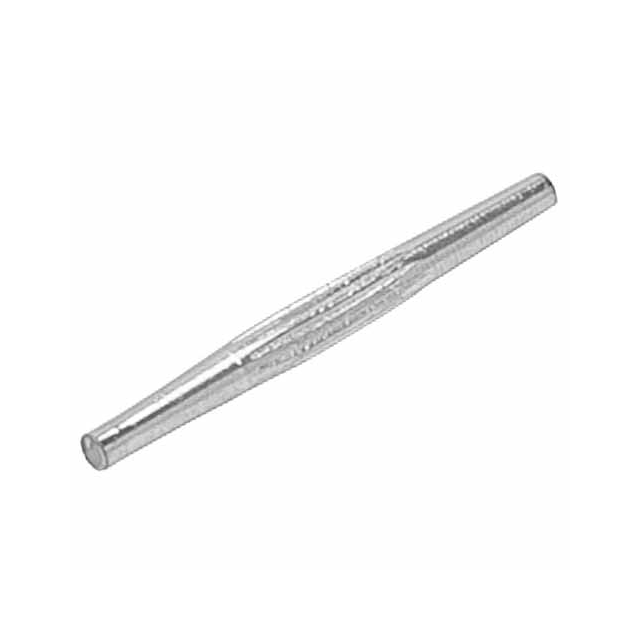

VERTICAL THROUGHBOARD TERMINAL PIN, SPLINE PIN ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

VERTICAL THROUGHBOARD TERMINAL PIN, SPLINE PIN ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Insulation	Termination	Mounting Type	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Terminal Style	Contact Finish	Board Thickness	Board Thickness	Length - Overall	Length - Overall [x]	Terminal Type	Contact Material
Harwin Inc. H2089-01	Non-Insulated	Staking Flare	Through Hole	1.04 mm	0.041 in	0.039 in	0.99 mm	Double End	Tin	0.094 in	2.39 mm	11.9 mm	0.469 in	PC Pin	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6000	$ 0.36
Newark	Each	1000	$ 0.41

General part information

PC Pin Terminal Connector Through Hole Tin
