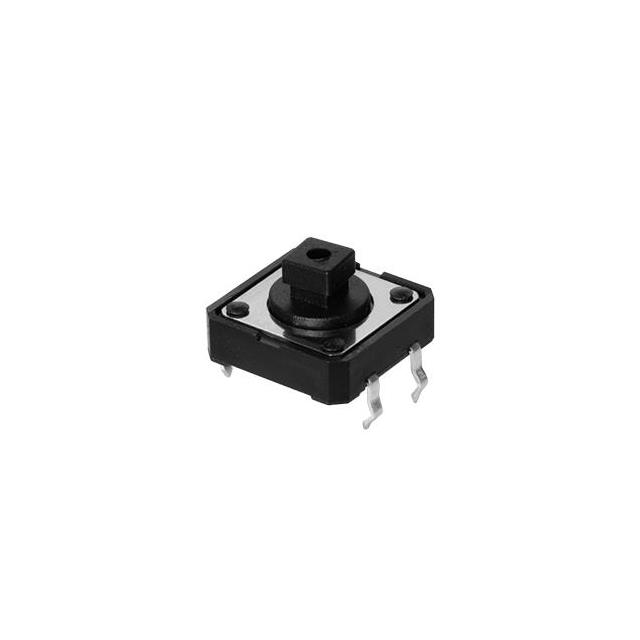

TS13-1212-73-BK-260-D

Active

CUI Devices

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CUI Devices

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TS13-1212-73-BK-260-D

Actuator Height off PCB, Vertical [z]	7.3 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	60000 Cycles
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Outline [x]	12 mm
Outline [y]	12 mm
Switch Function	Off-Mom
Switch Travel	0.35 mm
Termination Style	PC Pin

Part	Switch Function	Actuator Type	Contact Rating @ Voltage	Actuator Orientation	Mechanical Life	Actuator Material	Actuator Height off PCB, Vertical [z]	Illumination	Operating Force	Mounting Type	Circuit	Switch Travel	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Outline [y]	Outline [x]
CUI Devices TS13-1212-73-BK-260-D	Off-Mom	Plunger for Cap	0.05 A 12 VDC	Top Actuated	60000 Cycles	Nylon 6/6 Polyamide (PA66)	7.3 mm	Non-Illuminated	260 gf	Through Hole	SPST-NO	0.35 mm	PC Pin	-30 ░C	80 C	12 mm	12 mm
CUI Devices TS13-1212-73-BK-160-D	Off-Mom	Plunger for Cap	0.05 A 12 VDC	Top Actuated	80000 Cycles	Nylon 6/6 Polyamide (PA66)	7.3 mm	Non-Illuminated		Through Hole	SPST-NO	0.35 mm	PC Pin	-30 ░C	80 C	12 mm	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
