325-013-540-101

Active

EDAC Inc.

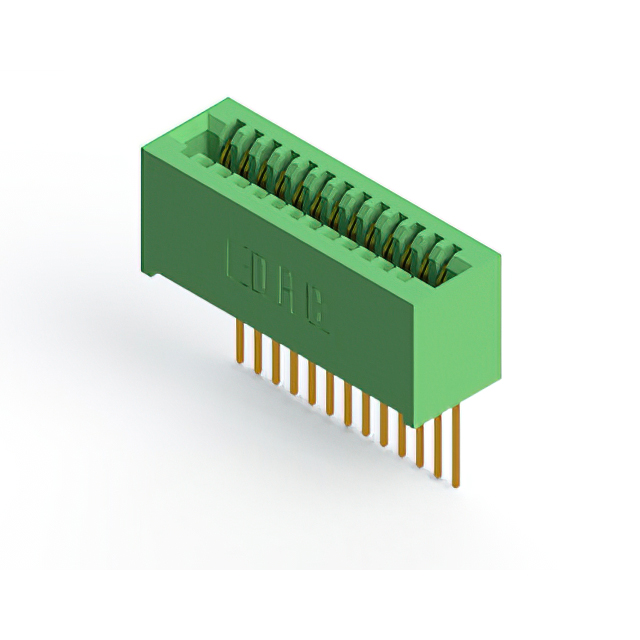

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 13 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Search across all available documentation for this part.

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 13 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	325-013-540-101

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	13
Number of Positions/Bay/Row [custom]	13
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

Part	Card Type	Contact Type	Color	Gender	Mounting Type	Termination Rows	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Read Out	Card Thickness	Card Thickness	Pitch [x]	Pitch [x]	Termination	Number of Positions/Bay/Row [custom]	Flange Feature	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material - Insulation
EDAC Inc. 325-013-520-107	Non Specified - Single Edge	Cantilever	Green	Female	Through Hole	1	13	Gold	10 Áin	0.25 Ám	Single	3.18 mm	0.125 in	2.54 mm	0.1 in	Solder	13	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	125 °C	-65 ░C	1	Diallyl Phthalate (DAP)
EDAC Inc. 325-013-540-101	Non Specified - Single Edge	Cantilever	Green	Female	Through Hole	1	13	Gold	10 Áin	0.25 Ám	Single	3.18 mm	0.125 in	2.54 mm	0.1 in	Wire Wrap	13		Copper Alloy	125 °C	-65 ░C	1	Diallyl Phthalate (DAP)
EDAC Inc. 325-013-540-107	Non Specified - Single Edge	Cantilever	Green	Female	Through Hole	1	13	Gold	10 Áin	0.25 Ám	Single	3.18 mm	0.125 in	2.54 mm	0.1 in	Wire Wrap	13	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	125 °C	-65 ░C	1	Diallyl Phthalate (DAP)
EDAC Inc. 325-013-520-101	Non Specified - Single Edge	Cantilever	Green	Female	Through Hole	1	13	Gold	10 Áin	0.25 Ám	Single	3.18 mm	0.125 in	2.54 mm	0.1 in	Solder	13		Copper Alloy	125 °C	-65 ░C	1	Diallyl Phthalate (DAP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
