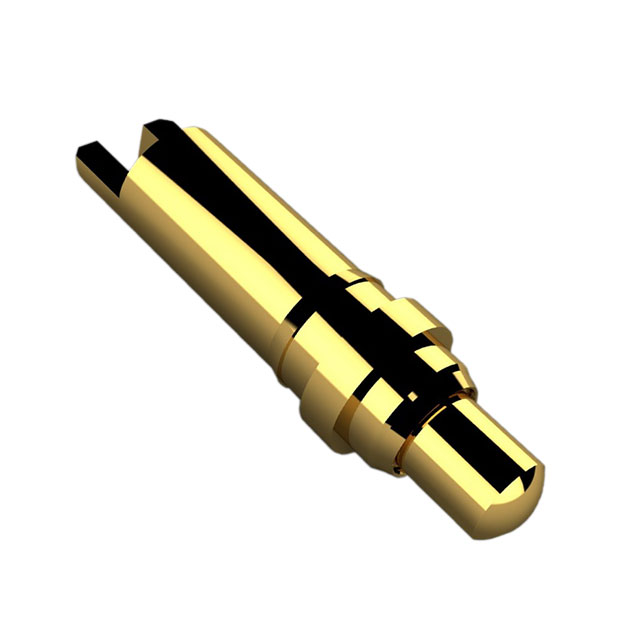

90166-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
90166-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 90166-AS |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 3 A |
| Mating Cycles | 40000 |
| Maximum Working Height [Max] | 6 mm |
| Maximum Working Height [Max] | 0.236 in |
| Minimum Working Height [Min] | 4.9 mm |
| Minimum Working Height [Min] | 0.193 in |
| Mounting Type | Solder Cup, Through Hole |
| Operating Force - Initial | 50.99 gf |
| Operating Force - Mid Compression | 112.17 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 1.5 mm |
| Pad Layout Dimension [diameter] | 0.059 in |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.62 | |
| 10 | $ 1.41 | |||
| 100 | $ 1.26 | |||
| 1000 | $ 0.90 | |||
| 5000 | $ 0.80 | |||
| 10000 | $ 0.78 | |||
Description
General part information
90166 Series
Contact Spring Through Hole, Solder Cup
