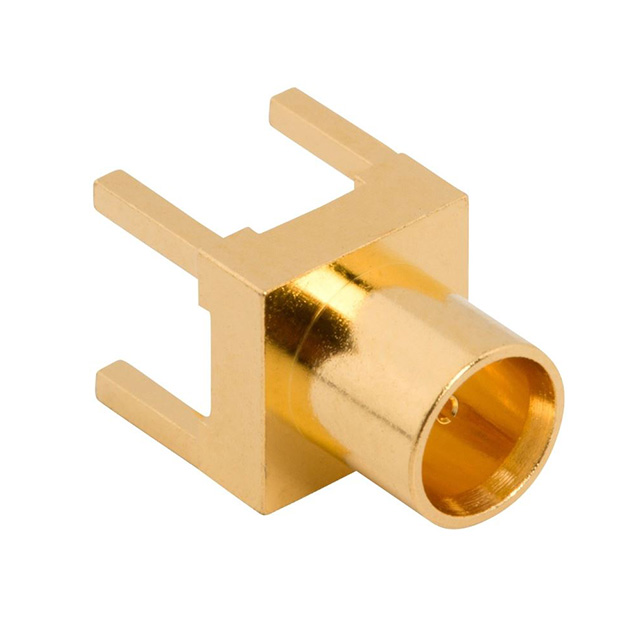

919-422J-71P12G

Active

Amphenol RF

RF / COAXIAL CONNECTOR, MCX COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL CONNECTOR, MCX COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	919-422J-71P12G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12 GHz
Housing Color	Gold
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Body Material	Center Contact Material	Connector Style	Connector Type	Mounting Type	Mating Cycles	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Impedance	Fastening Type	Dielectric Material	Number of Ports	Body Finish	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color
Amphenol RF 919-422J-71P12G	Brass	Beryllium Copper	MCX	Female Socket Jack	Through Hole	500	12 GHz	Solder	Gold	75 Ohms	Snap-On	Polytetrafluoroethylene (PTFE)	1	Gold	Solder	-65 ░C	165 °C	Gold
Amphenol RF 919-423J-71P12G	Brass	Beryllium Copper	MCX	Female Socket Jack	Through Hole	500	12 GHz	Solder	Gold	75 Ohms	Snap-On	Polytetrafluoroethylene (PTFE)	1	Gold	Solder	-65 ░C	165 °C	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Jack, Female Socket 75 Ohms Through Hole Solder
