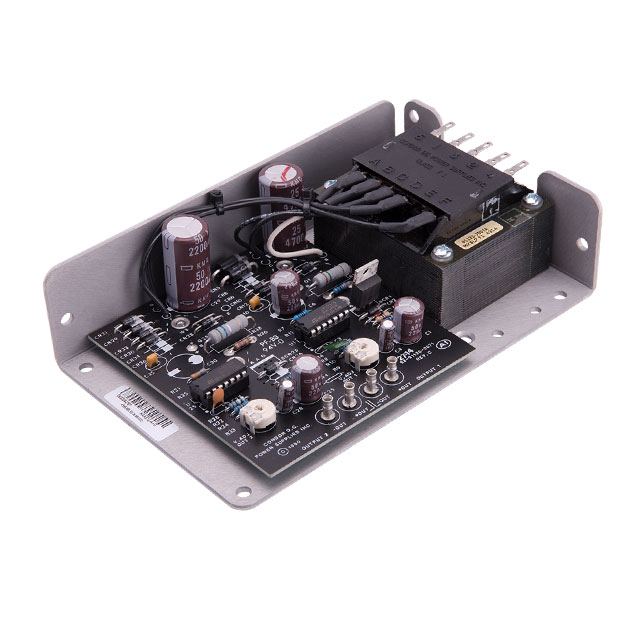

HAA524-A+G

Active

SL POWER / Advanced Energy

LINEAR POWER SUPPLIES 5V@2A 18-24V @ 0.3A

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

LINEAR POWER SUPPLIES 5V@2A 18-24V @ 0.3A

Technical Specifications

Parameters and characteristics for this part

Specification	HAA524-A+G

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	2 A
Current - Output 2	300 mA
Efficiency	45 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	6.5 in
Size / Dimension [x]	165.1 mm
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	41.1 mm
Size / Dimension [z]	1.62 in
Type	Linear
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	5 V
Voltage - Output 2 [Max]	24 V
Voltage - Output 2 [Min]	18 V

Linear Power Supplies 5V@2A 18-24V @ 0.3A

Part	Efficiency	Voltage - Output 2 [Min]	Voltage - Output 2 [Max]	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Features	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 2	Applications	Type	Voltage - Output 1	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
SL POWER / Advanced Energy HAA524-A+G	45 %	18 V	24 V	2	4 "	6.5 in	41.1 mm	165.1 mm	101.6 mm	1.62 in	2 A	Adjustable Output Remote Sense Universal Input	CE cURus TUV	240 VAC	100 VAC	300 mA	ITE (Commercial)	Linear	5 V	Chassis Mount	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Power Supplies 5V@2A 18-24V @ 0.3A
