PF24011 NA005

Active

ALPHA WIRE

SLEEVING 0.091" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.091" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics for this part

Specification	PF24011 NA005

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside [diameter]	0.091 in
Diameter - Inside [diameter]	2.31 mm
Diameter - Outside [diameter]	3.12 mm
Diameter - Outside [diameter]	0.123 in
Environment Protection	Corrosion Resistant
Length	100 ft
Length	30.48 m
Material	Fiberglass
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	648 °C
Operating Temperature [Min]	-60 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness	0.011 in
Wall Thickness	0.28 mm

Part	Type Attributes	Environment Protection	Abrasion Protection	Operating Temperature [Min]	Operating Temperature [Max]	Color	Wall Thickness	Wall Thickness	Material Flammability Rating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length	Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type	Material
ALPHA WIRE PF24011 NA005	Braided	Corrosion Resistant	Abrasion Resistant	-60 °C	648 °C	Natural	0.011 in	0.28 mm	UL VW-1	3.12 mm	0.123 in	100 ft	30.48 m	0.091 in	2.31 mm	Sleeving	Fiberglass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

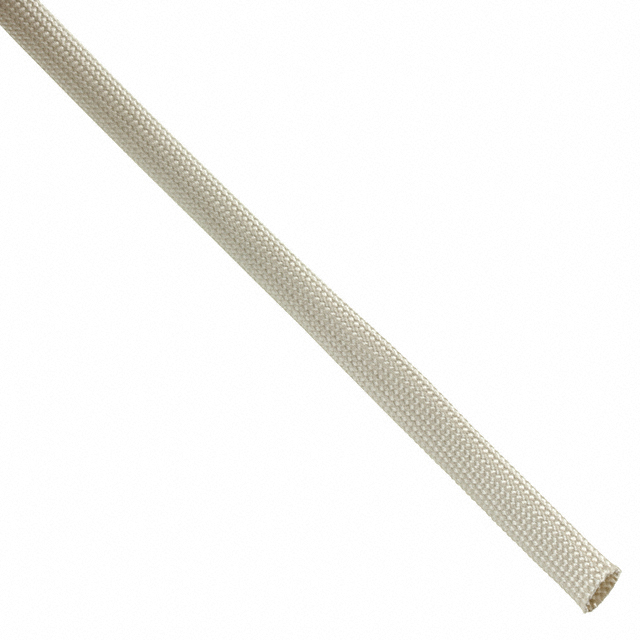

Natural Fiberglass Braided Sleeving 0.091" (2.31mm) 100' (30.48m)
