7201LA12SOG8

Active

Renesas Electronics Corporation

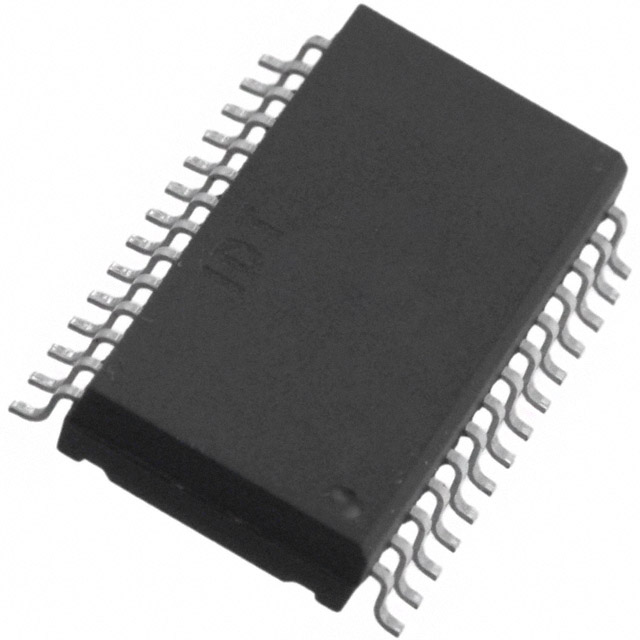

IC FIFO ASYNC 512X9 12NS 28SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IDT Suffixes +1

7201LA12SOG8

Active

Renesas Electronics Corporation

IC FIFO ASYNC 512X9 12NS 28SOIC

Deep-Dive with AI

DocumentsDatasheet IDT Suffixes +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7201LA12SOG8

Access Time	12 ns
Bus Directional	Uni-Directional
Current - Supply (Max) [Max]	80 mA
Data Rate	50 MHz
Expansion Type	Width, Depth
Function	Asynchronous
FWFT Support	False
Memory Size	4.5 K
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	28-SOIC
Package / Case [x]	0.345 in
Package / Case [y]	8.77 mm
Programmable Flags Support	False
Retransmit Capability	True
Supplier Device Package	28-SOIC
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

7201 Series

512 x 9 Async FIFO, 5.0V

Part	Supplier Device Package	Bus Directional	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Mounting Type	Data Rate	Expansion Type	Memory Size	Access Time	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Package / Case [x]	Package / Case [y]	Package / Case	Package / Case
Renesas Electronics Corporation 7201LA12J	32-PLCC (14x11.46)	Uni-Directional	70 °C	0 °C	80 mA	Surface Mount	50 MHz	Depth Width	4.5 K	12 ns	32-LCC (J-Lead)	4.5 V	5.5 V	Asynchronous
Renesas Electronics Corporation IDT7201LA25SO8	28-SOIC	Uni-Directional	70 °C	0 °C	80 mA	Surface Mount	28.5 MHz	Depth Width	4.5 K	25 ns	28-SOIC	4.5 V	5.5 V	Asynchronous	0.345 in	8.77 mm
Renesas Electronics Corporation 7201LA12JG	32-PLCC (14x11.46)	Uni-Directional	70 °C	0 °C	80 mA	Surface Mount	50 MHz	Depth Width	4.5 K	12 ns	32-LCC (J-Lead)	4.5 V	5.5 V	Asynchronous
Renesas Electronics Corporation 7201LA50TDB	28-ThinCerDip	Uni-Directional	125 °C	-55 °C	80 mA	Through Hole	15 MHz	Depth Width	4.5 K	50 ns	28-CDIP	4.5 V	5.5 V	Asynchronous			7.62 mm	0.3 in
Renesas Electronics Corporation 7201LA50PDG
Renesas Electronics Corporation 7201LA15JGI8	32-PLCC (14x11.46)	Uni-Directional	85 °C	-40 °C	80 mA	Surface Mount	40 MHz	Depth Width	4.5 K	15 ns	32-LCC (J-Lead)	4.5 V	5.5 V	Asynchronous
Renesas Electronics Corporation 7201LA15JI	32-PLCC (14x11.46)	Uni-Directional	85 °C	-40 °C	80 mA	Surface Mount	40 MHz	Depth Width	4.5 K	15 ns	32-LCC (J-Lead)	4.5 V	5.5 V	Asynchronous
Renesas Electronics Corporation 7201LA12SOG8	28-SOIC	Uni-Directional	70 °C	0 °C	80 mA	Surface Mount	50 MHz	Depth Width	4.5 K	12 ns	28-SOIC	4.5 V	5.5 V	Asynchronous	0.345 in	8.77 mm
Renesas Electronics Corporation 7201LA35J	32-PLCC (14x11.46)	Uni-Directional	70 °C	0 °C	80 mA	Surface Mount	22.2 MHz	Depth Width	4.5 K	35 ns	32-LCC (J-Lead)	4.5 V	5.5 V	Asynchronous
Renesas Electronics Corporation 7201LA20J8	32-PLCC (14x11.46)	Uni-Directional	70 °C	0 °C	80 mA	Surface Mount	33.3 MHz	Depth Width	4.5 K	20 ns	32-LCC (J-Lead)	4.5 V	5.5 V	Asynchronous

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 9.71

Description

General part information

7201 Series

The 7201 is a 512 x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.

Documents

Technical documentation and resources

Datasheet

IDT Suffixes

Datasheet

7200/7201/7202 Datasheet

Datasheet
