RASSM10PS

Active

Switchcraft Inc.

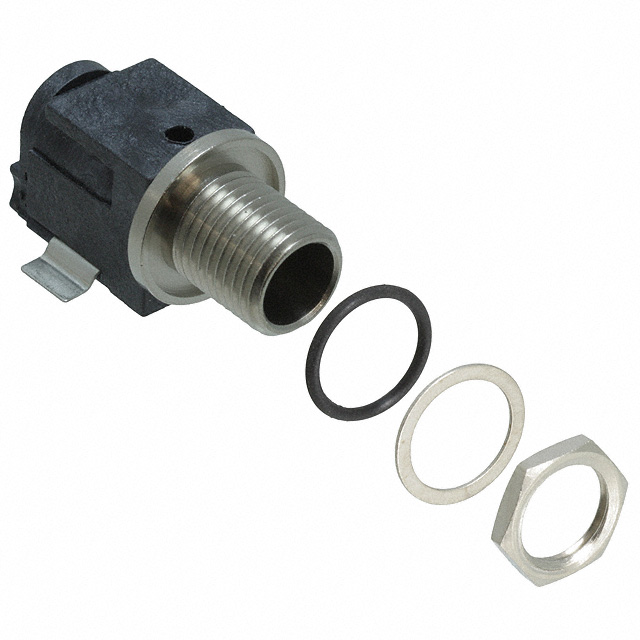

CONN PWR JACK 2X5.5MM SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PWR JACK 2X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	RASSM10PS

Actual Diameter [diameter]	0.252 ", 0.079 in
Actual Diameter [diameter]	2 mm, 6.4 mm
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating (Amps)	11 A
Features	Board Guide
Gender	Male
Housing Material	Thermoplastic
Includes	1 Washer, 1 O-Ring, 1 Nut, 1 Connector
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm
Ingress Protection	IP68
Insulation Color	Silver
Internal Switch(s)	Single Switch, Normally Closed
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Surface Mount
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded
Termination	Solder
Thread Size	5/16"-32
Voltage - Rated	24 VDC

Part	Internal Switch(s)	Housing Material	Contact Material - Plating	Thread Size	Body Color	Current Rating (Amps)	Mounting Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Ingress Protection	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Insulation Color	Contact Material	Connector Type	Gender	Mounting Feature	Includes	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination	Voltage - Rated	Number of Positions/Contacts
Switchcraft Inc. RASSM10PS	Normally Closed Single Switch	Thermoplastic	Tin	5/16"-32	Black	11 A	Surface Mount	0.079 in 0.252 "	2 mm 6.4 mm	IP68	0.079 in 0.217 "	2 mm 5.5 mm	Silver	Copper Alloy	Jack	Male	Bulkhead - Front Side Nut	1 Connector 1 Nut 1 O-Ring 1 Washer	Unshielded	-40 °C	105 ░C	Board Guide	Solder	24 VDC	2 Conductors 3 Conductors
Switchcraft Inc. RASSM10S	Normally Closed Single Switch	Thermoplastic	Tin	5/16"-32	Black	11 A	Surface Mount	0.079 in 0.252 "	2 mm 6.4 mm	IP68	0.079 in 0.217 "	2 mm 5.5 mm	Silver	Copper Alloy	Jack	Male	Bulkhead - Front Side Nut	1 Connector 1 Nut 1 O-Ring 1 Washer	Unshielded	-40 °C	105 ░C		Solder	24 VDC	2 Conductors 3 Conductors
Switchcraft Inc. RASSM10	Normally Closed Single Switch	Thermoplastic	Tin	5/16"-32	Black	11 A	Surface Mount	0.079 in 0.252 "	2 mm 6.4 mm		0.079 in 0.217 "	2 mm 5.5 mm	Silver	Copper Alloy	Jack	Male	Bulkhead - Front Side Nut	Connector Nut Washer	Unshielded	-40 °C	105 ░C		Solder	24 VDC	2 Conductors 3 Conductors

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount
