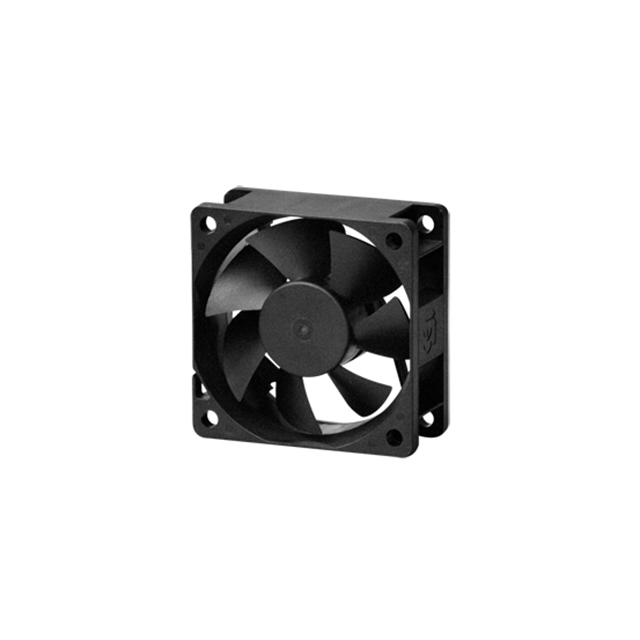

MF60252V2-1000U-A99

Active

Sunon Fans

FAN AXIAL 60X25MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 60X25MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MF60252V2-1000U-A99

Air Flow	0.54 mł/min
Air Flow	19.3 CFM
Approval Agency	cURus, TUV
Current Rating (Amps)	30 mA
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	22 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	720 mW
RPM	3800 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.101 lb
Weight	45.81 g
Width [y]	25 mm

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	Width [y]	Approval Agency	Noise	Lifetime @ Temp.	Voltage - Rated	Fan Type	Material - Blade	Air Flow	Air Flow	Weight	Weight	Features	RPM	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Current Rating (Amps)
Sunon Fans MF60252V2-1000U-A99	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	25 mm	cURus TUV	22 dB(A)	70000 Hrs	24 VDC	Tubeaxial	Polybutylene Terephthalate (PBT)	0.54 mł/min	19.3 CFM	0.101 lb	45.81 g	Auto Restart	3800 RPM	60 mm	60 mm	720 mW	30 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 6.41

General part information

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Vapo-Bearing™ 19.3 CFM (0.540m³/min) 2 Wire Leads
