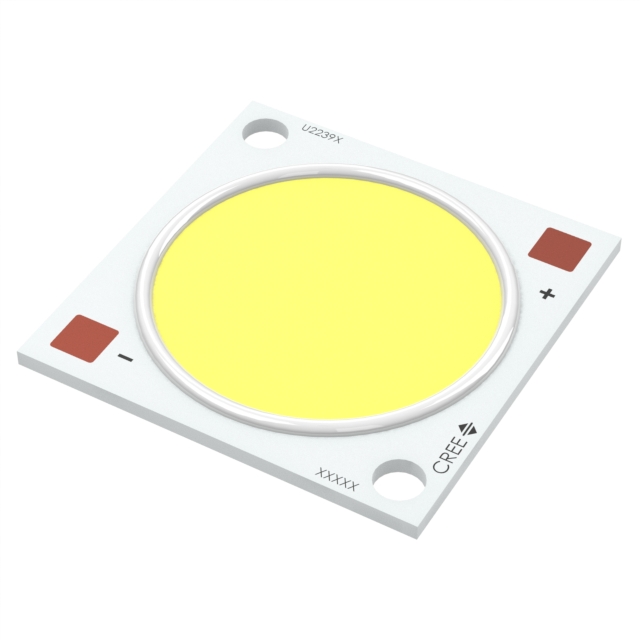

CMU2239-0000-000N0H0A40G

Active

Cree LED

LED COB XLAMP NEUT WHT SQU 4000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMU2239-0000-000N0H0A40G

Active

Cree LED

LED COB XLAMP NEUT WHT SQU 4000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMU2239-0000-000N0H0A40G

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	2.88 A
Current - Test	1.08 A
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	22 mm
Luminous Flux @ Current/Temperature	6060 lm
Size / Dimension [x]	28 mm
Size / Dimension [y]	28 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU2239 Series

...

Part	Type	Height [z]	Viewing Angle	Light Emitting Surface (LES) [diameter]	CCT (K)	Temperature - Test	CRI (Color Rendering Index)	Current - Max [Max]	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Configuration	Lens Type	Color	Lumens/Watt @ Current - Test
Cree LED CMU2239-0000-000N0H0A35G	Chip On Board (COB)	1.5 mm	115 °	22 mm	3500 K	85 °C	80	2.88 A	6015 lm	33.7 V	28 mm	28 mm	1.08 A	Square	Flat	Warm White
Cree LED CMU2239-0000-000N0H0A40G	Chip On Board (COB)	1.5 mm	115 °	22 mm	4000 K	85 °C	80	2.88 A	6060 lm	33.7 V	28 mm	28 mm	1.08 A	Square	Flat	Neutral White
Cree LED CMU2239-R040-000N0Z0AL7C	Chip On Board (COB)	1.5 mm	115 °	22 mm	3000 K	85 °C	95	2.88 A	4401 lm	33.7 V	28 mm	28 mm	1.08 A	Square	Flat	Warm White	121 lm/W
Cree LED CMU2239-R040-000N0U0A30Q	Chip On Board (COB)	1.5 mm	115 °	22 mm	3000 K	85 °C	90	2.88 A	5214 lm	33.7 V	28 mm	28 mm	1.08 A	Square	Flat	Warm White	143 lm/W
Cree LED CMU2239-R040-00PN0U0A27G	Chip On Board (COB)	1.5 mm	115 °	22 mm	2700 K	85 °C	90	2.88 A		33.7 V	28 mm	28 mm	1.08 A	Square	Flat	Warm White
Cree LED CMU2239-0000-000N0Z0A27H	Chip On Board (COB)	1.5 mm	115 °	22 mm	2700 K	85 °C	95	2.88 A	4445 lm	33.7 V	28 mm	28 mm	1.08 A	Square	Flat	Warm White	122 lm/W
Cree LED CMU2239-R040-00PN0U0A31Q	Chip On Board (COB)	1.5 mm	115 °	22 mm	3100 K	85 °C	90	2.88 A		33.7 V	28 mm	28 mm	1.08 A	Square	Flat	Warm White
Cree LED CMU2239-R040-000N0H0A57G	Chip On Board (COB)	1.5 mm	115 °	22 mm		85 °C	80	2.88 A	6352 lm	33.7 V	28 mm	28 mm	1.08 A	Square	Flat	Cool White	175 lm/W
Cree LED CMU2239-0000-000N0B0A40E	Chip On Board (COB)	1.5 mm	115 °	22 mm	4000 K	85 °C	70	2.88 A	6647 lm	33.7 V	28 mm	28 mm	1.08 A	Square	Flat	Neutral White	183 lm/W
Cree LED CMU2239-R040-00PN0Z0A40H	Chip On Board (COB)	1.5 mm	115 °	22 mm	4000 K	85 °C	95	2.88 A		33.7 V	28 mm	28 mm	1.08 A	Square	Flat	Neutral White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.60
		10	$ 9.12
		50	$ 8.86
		100	$ 8.16
		200	$ 7.42
		500	$ 6.95
		1000	$ 6.40

Description

General part information

CMU2239 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMU2239 White, Neutral Square
