AMA24DR4-120150Y

Active

aimtec

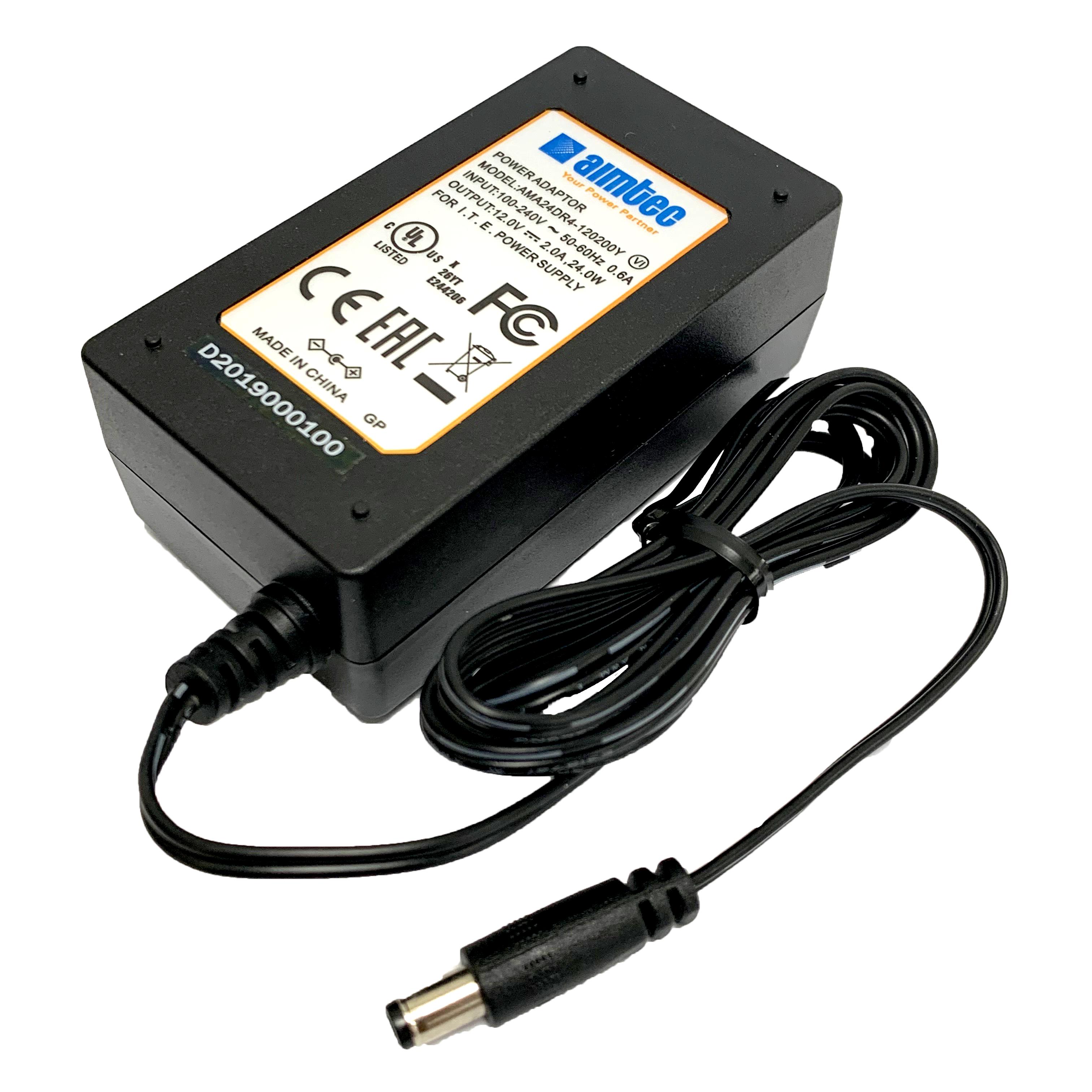

AC/DC DESKTOP ADAPTER 12V 18W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMA24DR4-120150Y

Active

aimtec

AC/DC DESKTOP ADAPTER 12V 18W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMA24DR4-120150Y

Applications	ITE (Commercial)
Approval Agency	UL, CE
Cord Length	60.2 in
Cord Length	1.5 m
Current - Output (Max) [Max]	1.5 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	International
Size / Dimension [x]	90 mm
Size / Dimension [x]	3.54 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	33.9 mm
Size / Dimension [z]	1.33 "
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V
Weight	0.309 lb
Weight	140 g

AMA24 Series

Part	Approval Agency	Power (Watts)	Weight	Weight	Input Connector	Efficiency	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized	Cord Length	Cord Length	Standard Number	Form	Polarization	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Voltage - Output	No Load Power Consumption	Operating Temperature [Max]
aimtec AMA24UR4-120200Y	CE UL	24 W	130 g	0.287 lb	NEMA 1-15P	Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	North America	60.2 in	1.5 m	60950-1 62368-1	Wall Mount (Class II)	Positive Center	ITE (Commercial)	1.34 in	72 mm	73 mm	34 mm	2.87 "	2.83 "	2 A	90 VAC	264 VAC	Fixed Blade	12 V	100 mW	40 °C
aimtec AMA24UR4-050300Y	CE UL	15 W	130 g	0.287 lb	NEMA 1-15P	Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	North America	60.2 in	1.5 m	60950-1 62368-1	Wall Mount (Class II)	Positive Center	ITE (Commercial)	1.34 in	72 mm	73 mm	34 mm	2.87 "	2.83 "	3 A	90 VAC	264 VAC	Fixed Blade	5 V	100 mW	40 °C
aimtec AMA24DR4-120150Y	CE UL	18 W	140 g	0.309 lb	IEC 320-C8	Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	International	60.2 in	1.5 m	62368-1	Desktop (Class II)	Positive Center	ITE (Commercial)	1.97 "	90 mm	33.9 mm	50 mm	1.33 "	3.54 in	1.5 A	90 VAC	264 VAC	Cord	12 V	100 mW	40 °C
aimtec AMA24UR5-120200Y	CE FCC UL	24 W	130 g	0.287 lb	NEMA 1-15P	Level VI	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	North America	60.2 in	1.5 m	60950-1 62368-1	Wall Mount (Class II)	Positive Center	ITE (Commercial)	1.34 in	72 mm	73 mm	34 mm	2.87 "	2.83 "	2 A	90 VAC	264 VAC	Fixed Blade	12 V	100 mW	40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 24.83
		120	$ 23.84
		240	$ 22.89
		480	$ 21.74
		960	$ 20.44
		1920	$ 19.42
		3840	$ 18.64

Description

General part information

AMA24 Series

12V 18 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
