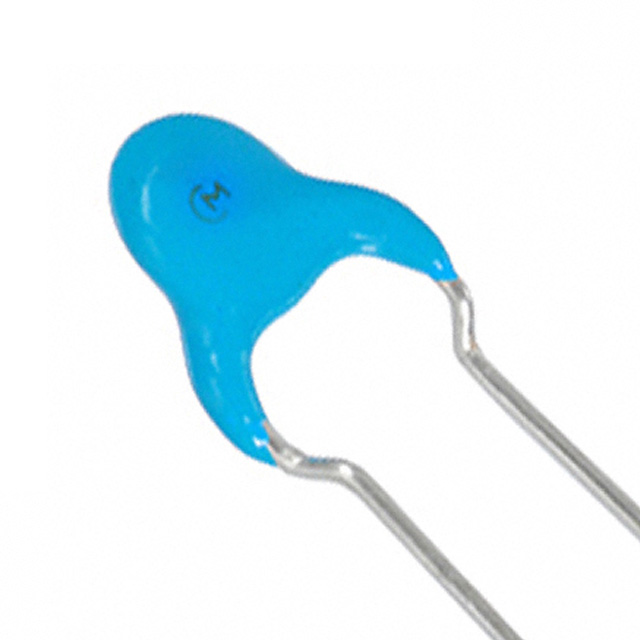

DEBB33D152KA2B

Obsolete

Murata Power Solutions Inc.

CAP CER 1500PF 2KV RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHigh Volt Ceramic Caps 250V-6.3kV Part Numbering Datasheet

DEBB33D152KA2B

Obsolete

Murata Power Solutions Inc.

CAP CER 1500PF 2KV RADIAL

Deep-Dive with AI

DocumentsHigh Volt Ceramic Caps 250V-6.3kV Part Numbering Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DEBB33D152KA2B

Applications	General Purpose
Capacitance	1500 pF
Features	High Voltage
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lead Style	Formed Leads
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Disc, Radial
Size / Dimension [diameter]	9 mm
Size / Dimension [diameter]	0.354 in
Temperature Coefficient	B
Tolerance	10 %
Voltage - Rated	2 kV
Voltage - Rated	2000 V

DEBB33D Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Style	Capacitance	Lead Spacing	Lead Spacing	Mounting Type	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. DEBB33D222KN2A	-25 °C	85 °C	General Purpose	Disc Radial	High Voltage	13 mm	0.512 "	Straight	2200 pF	5 mm	0.197 in	Through Hole	10 %	10 mm	0.394 in	B	2 kV	2000 V
Murata Power Solutions Inc. DEBB33D472KA3B	-25 °C	85 °C	General Purpose	Disc Radial	High Voltage		0.709 "	Formed Leads	4700 pF	7.5 mm	0.295 in	Through Hole	10 %	15 mm	0.591 in	B	2 kV	2000 V	18 mm
Murata Power Solutions Inc. DEBB33D681KN2A	-25 °C	85 °C	General Purpose	Disc Radial	High Voltage			Straight	680 pF	5 mm	0.197 in	Through Hole	10 %	7 mm	0.276 in	B	2 kV	2000 V	10 mm	0.394 in
Murata Power Solutions Inc. DEBB33D332KN3A	-25 °C	85 °C	General Purpose	Disc Radial	High Voltage			Formed Leads	3300 pF	7.5 mm	0.295 in	Through Hole	10 %	12 mm	0.472 in	B	2 kV	2000 V	15 mm	0.591 "
Murata Power Solutions Inc. DEBB33D472KN7A	-25 °C	85 °C	General Purpose	Disc Radial	High Voltage		0.709 "	Formed Leads	4700 pF	7.5 mm	0.295 in	Through Hole	10 %	15 mm	0.591 in	B	2 kV	2000 V	18 mm
Murata Power Solutions Inc. DEBB33D101KP2A	-25 °C	85 °C	General Purpose	Disc Radial	High Voltage	7.5 mm	0.295 in	Straight	100 pF	5 mm	0.197 in	Through Hole	10 %	4.5 mm	0.177 "	B	2 kV	2000 V
Murata Power Solutions Inc. DEBB33D102KA2B	-25 °C	85 °C	General Purpose	Disc Radial	High Voltage	11 mm	0.433 in	Formed Leads	0.001 µF	5 mm	0.197 in	Through Hole	10 %	8 mm	0.315 "	B	2 kV	2000 V
Murata Power Solutions Inc. DEBB33D331KC1B	-25 °C	85 °C	General Purpose	Disc Radial	High Voltage	8 mm	0.315 in	Straight	330 pF	5 mm	0.197 in	Through Hole	10 %	5 mm	0.197 "	B	2 kV	2000 V
Murata Power Solutions Inc. DEBB33D152KA2B	-25 °C	85 °C	General Purpose	Disc Radial	High Voltage	12 mm	0.472 "	Formed Leads	1500 pF	5 mm	0.197 in	Through Hole	10 %	9 mm	0.354 in	B	2 kV	2000 V
Murata Power Solutions Inc. DEBB33D151KC1B	-25 °C	85 °C	General Purpose	Disc Radial	High Voltage	7.5 mm	0.295 in	Straight	150 pF	5 mm	0.197 in	Through Hole	10 %	4.5 mm	0.177 "	B	2 kV	2000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DEBB33D Series

1500 pF ±10% 2000V (2kV) Ceramic Capacitor B Radial, Disc

Documents

Technical documentation and resources

High Volt Ceramic Caps 250V-6.3kV Part Numbering

Datasheet
