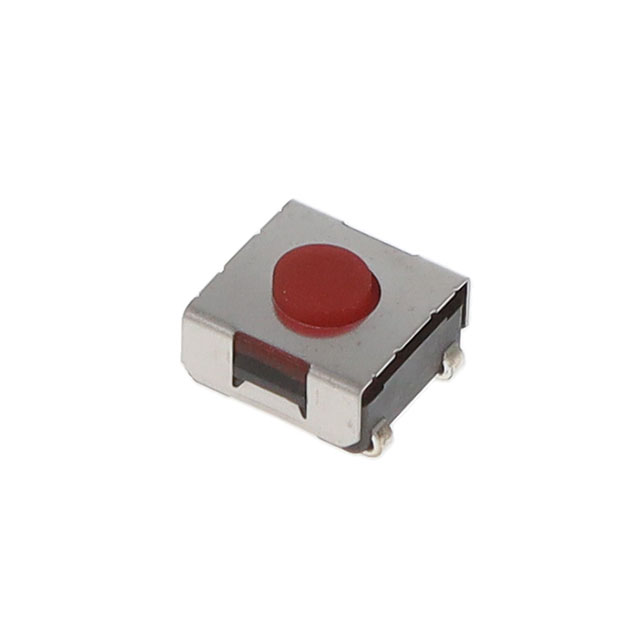

ADTSJW65RV

Active

APEM

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

APEM

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	ADTSJW65RV

Actuator Height off PCB, Vertical	3.5 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Washable
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	6.3 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.45 mm
Termination Style	J Lead

Part	Actuator Material	Actuator Height off PCB, Vertical	Switch Function	Outline [x]	Outline [y]	Termination Style	Switch Travel	Circuit	Features	Actuator Type	Contact Rating @ Voltage	Illumination	Mounting Type	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force
APEM ADTSJW69RVTR	Nylon Polyamide (PA)	3.8 mm	Off-Mom	6.3 mm	6.2 mm	J Lead	0.45 mm	SPST-NO	Washable	Standard	0.05 A 12 VDC	Non-Illuminated	Surface Mount	Top Actuated	70 °C	-25 °C	260 gf
APEM ADTSJW65TVTR	Nylon Polyamide (PA)	3.5 mm	Off-Mom	6.3 mm	6.2 mm	J Lead	0.45 mm	SPST-NO	Washable	Standard	0.05 A 12 VDC	Non-Illuminated	Surface Mount	Top Actuated	70 °C	-25 °C	360 gf
APEM ADTSJW65RV	Nylon Polyamide (PA)	3.5 mm	Off-Mom	6.3 mm	6.2 mm	J Lead	0.45 mm	SPST-NO	Washable	Standard	0.05 A 12 VDC	Non-Illuminated	Surface Mount	Top Actuated	70 °C	-25 °C	260 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
