930-114P-51A

Active

Amphenol RF

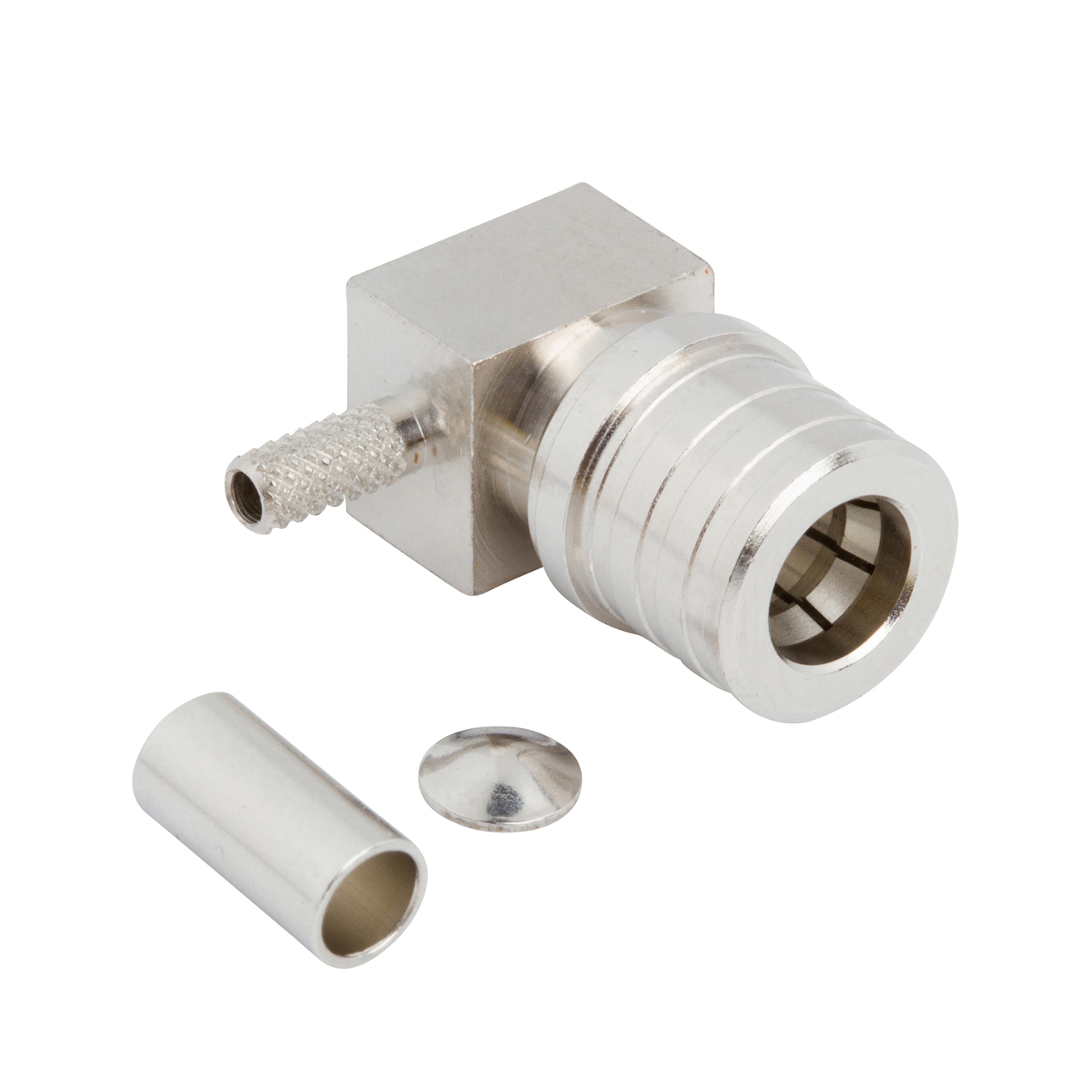

CONNECTOR: COAXIAL; PLUG; MALE; QMA; SOLDERING,CRIMPED; FOR CABLE

Deep-Dive with AI

Search across all available documentation for this part.

930-114P-51A

Active

Amphenol RF

CONNECTOR: COAXIAL; PLUG; MALE; QMA; SOLDERING,CRIMPED; FOR CABLE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	930-114P-51A

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-179, M17/152-RD316, 316 Double Braid, 188
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	480 V

930-11 Series

Part	Body Finish	Fastening Type	Body Material	Center Contact Material	Dielectric Material	Shield Termination	Connector Type	Voltage Rating	Mounting Type	Contact Termination	Mating Cycles	Housing Color	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Frequency - Max [Max]	Number of Ports	Cable Group	Includes	Mounting Feature
Amphenol RF 930-116J-51P	Gold	Snap-On	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Solder	Female Socket Jack	480 V	Through Hole	Solder	500	Gold	Gold	-65 ░C	165 °C	50 Ohms	6000 MHz	1
Amphenol RF 930-106P-51A	White Bronze	Snap-On	Brass	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	480 V	Free Hanging (In-Line) Right Angle	Solder		Silver	Gold	-65 ░C	165 °C	50 Ohms	3 GHz	1	Belden 9258 LMR-240	1 Connector 1 End Cap 1 Ferrule
Amphenol RF 930-111J-51P	Gold	Snap-On	Brass Zinc Alloy	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Solder	Female Socket Receptacle	480 V	Surface Mount Right Angle Through Hole	Solder	500	Gold	Gold	-65 ░C	165 °C	50 Ohms	6000 MHz	1		1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut
Amphenol RF 930-110P-51A	White Bronze	Snap-On	Brass	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	480 V	Free Hanging (In-Line) Right Angle	Solder		Silver	Gold	-65 ░C	165 °C	50 Ohms	6000 MHz	1	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1 Connector 1 End Cap 1 Ferrule
Amphenol RF 930-114P-51A	White Bronze	Snap-On	Brass	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	480 V	Free Hanging (In-Line) Right Angle	Solder		Silver	Gold	-65 ░C	165 °C	50 Ohms	6000 MHz	1	188 316 Double Braid M17/152-RD316 RG-179	1 Connector 1 End Cap 1 Ferrule
Amphenol RF 930-115P-51S	White Bronze	Snap-On	Brass	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	480 V	Free Hanging (In-Line)	Crimp Solder		Silver	Gold	-65 ░C	165 °C	50 Ohms	6000 MHz	1	188 316 Double Braid M17/152-RD316 RG-179	1 Connector 1 Contact 1 Ferrule

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.13
TME	N/A	100	$ 23.85

Description

General part information

930-11 Series

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
