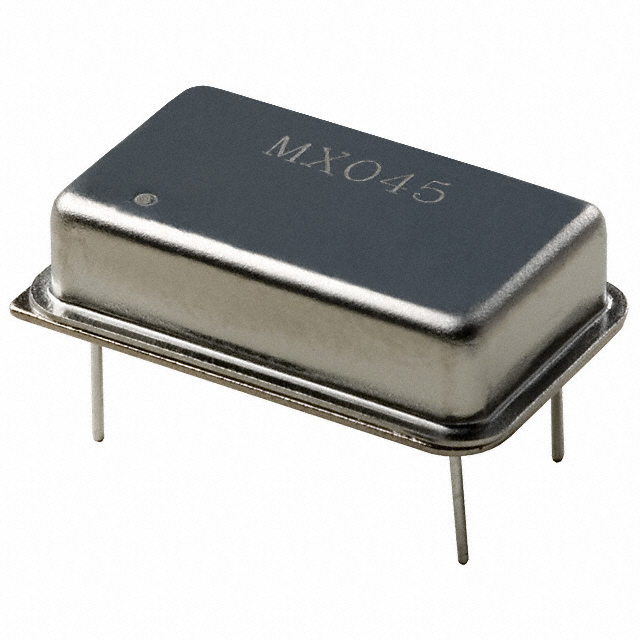

MXO45-2C-2M048000

Active

Tusonix a Subsidiary of CTS Electronic Components

0002.048000 MHZ HYBRID CIRCUIT

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

0002.048000 MHZ HYBRID CIRCUIT

Technical Specifications

Parameters and characteristics for this part

Specification	MXO45-2C-2M048000

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	15 mA
Current - Supply (Max) [Max]	26 mA
Frequency	2.048 MHz
Frequency Stability	100 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.24 in
Height - Seated (Max) [Max] [z]	6.1 mm
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output	HCMOS, TTL
Package / Case	14-DIP, 4 Leads (Full Size, Metal Can)
Size / Dimension [x]	0.819 "
Size / Dimension [x]	20.8 mm
Size / Dimension [y]	0.52 in
Size / Dimension [y]	13.2 mm
Type	XO (Standard)

Part	Frequency Stability	Current - Supply (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Frequency	Type	Function	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Output	Current - Supply (Disable) (Max) [Max]	Base Resonator	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case
Tusonix a Subsidiary of CTS Electronic Components MXO45-2C-5M0688000	100 ppm	26 mA	0.24 in	6.1 mm	Through Hole	5.0688 MHz	XO (Standard)	Enable/Disable	-20 C	70 °C	14-DIP Module 4 Leads	HCMOS TTL	15 mA	Crystal	0.819 "	0.52 in	13.2 mm	20.8 mm
Tusonix a Subsidiary of CTS Electronic Components MXO45-2C-2M048000	100 ppm	26 mA	0.24 in	6.1 mm	Through Hole	2.048 MHz	XO (Standard)	Enable/Disable	-20 C	70 °C	14-DIP 4 Leads (Full Size Metal Can)	HCMOS TTL	15 mA	Crystal	0.819 "	0.52 in	13.2 mm	20.8 mm
Tusonix a Subsidiary of CTS Electronic Components MXO45HST-2C-16M384000	100 ppm	26 mA	0.256 in	6.5 mm	Through Hole	16.384 MHz	XO (Standard)	Enable/Disable	-20 C	70 °C	8-DIP Module	HCMOS TTL	15 mA	Crystal	0.52 in	0.52 in	13.2 mm	13.2 mm	4 Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 2.64

General part information

2.048 MHz XO (Standard) HCMOS, TTL Oscillator 5V Enable/Disable 14-DIP, 4 Leads (Full Size, Metal Can)
