Technical Specifications
Parameters and characteristics for this part
| Specification | 1213F 003A1000 |
|---|---|
| Cable Type | Multi-Pair, Cat5e |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.97 mm |
| Jacket (Insulation) Diameter [diameter] | 0.235 in |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket Color | Orange |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 8 |
| Ratings | UL Style CMP |
| Shield Coverage | 100 % |
| Shield Material | Polyester, Aluminum |
| Shield Type | Foil |
| Usage | Video, Ethernet, LAN |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1213F Series

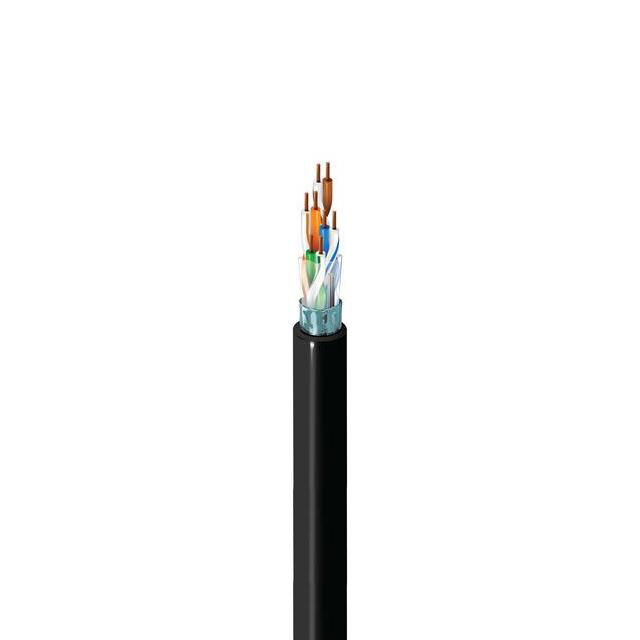

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Orange 24 AWG Foil 1000.0' (304.8m)
