0190410015

Obsolete

Molex

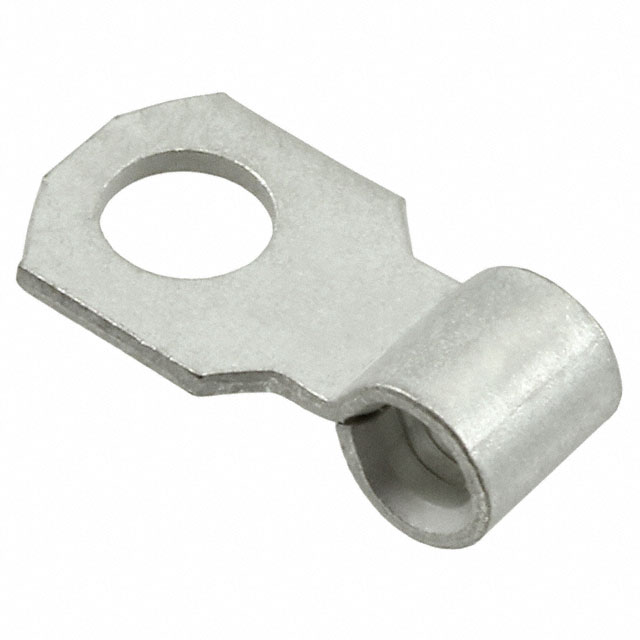

CONN RING CIRC 10-12AWG #10

Search across all available documentation for this part.

Obsolete

Molex

CONN RING CIRC 10-12AWG #10

Technical Specifications

Parameters and characteristics for this part

Part	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Contact Material	Mounting Type	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Termination	Insulation	Stud/Tab Size
Molex 0190410014	Circular	9.65 mm	0.38 "	8 Stud	Copper	Free Hanging (In-Line)	0.04 in	1.02 mm	12 AWG	10 AWG	Electro-Tin	Crimp Flag	Non-Insulated
Molex 0190410001	Circular	9.65 mm	0.38 "		Copper	Free Hanging (In-Line)	0.032 in	0.81 mm	22 AWG	17.5 AWG	Electro-Tin	Crimp Flag	Non-Insulated	6 Stud
Molex 0190410032	Circular	9.65 mm	0.38 "		Copper	Free Hanging (In-Line)	0.031 in	0.79 mm			Electro-Tin	Crimp Flag	Non-Insulated	0.25 Stud
Molex 0190410015	Circular	9.65 mm	0.38 "		Copper	Free Hanging (In-Line)	0.04 in	1.02 mm	12 AWG	10 AWG	Electro-Tin	Crimp Flag	Non-Insulated	10 Stud
Molex 0190410009
Molex 0190410012

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ring Terminal Connector 10 Stud Circular 10-12 AWG Crimp, Flag

Technical documentation and resources
