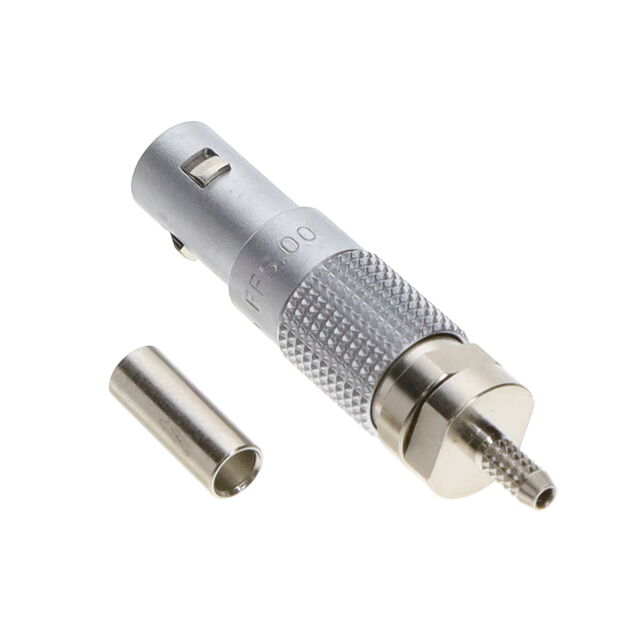

FFS.00.250.CTAE24

Active

LEMO

CONN NIMCAMA PLG STR 50OHM CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMA PLG STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FFS.00.250.CTAE24

Body Finish	Chrome
Body Material	Brass
Cable Group	RG-178B, 196A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	5000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	700 VDC

Part	Accessory Type	For Use With/Related Products	Fastening Type	Connector Style	Number of Ports	Contact Termination	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Cable Group	Center Contact Plating	Connector Type	Body Finish	Mounting Type	Center Contact Material	Shield Termination	Voltage Rating	Dielectric Material	Ingress Protection	Impedance	Housing Color
LEMO FFS.00.164.DN	Crimp Ferrule	00 Series Connector
LEMO FFS.00.250.CTCE52			Push-Pull	NIM-CAMAC CD/N 549	1	Crimp	Brass	-55 °C	260 ░C	5000	RG-58	Gold	Male Pin Plug	Chrome	Free Hanging (In-Line)	Brass	Crimp	700 VDC	Polytetrafluoroethylene (PTFE)	IP50	50 Ohms	Silver
LEMO FFS.00.162.DN	Crimp Ferrule	00 Series Connector
LEMO FFS.00.250.CTAE24			Push-Pull	NIM-CAMAC CD/N 549	1	Crimp	Brass	-55 °C	260 ░C	5000	196A RG-178B	Gold	Male Pin Plug	Chrome	Free Hanging (In-Line)	Brass	Crimp	700 VDC	Polytetrafluoroethylene (PTFE)	IP50	50 Ohms	Silver
LEMO FFS.00.160.DN	Crimp Ferrule	00 Series Connector
LEMO FFS.00.250.NTCE31			Push-Pull	NIM-CAMAC CD/N 549	1	Crimp	Brass	-55 °C	260 ░C	5000	188A 316 RG-174	Gold	Male Pin Plug	Nickel	Free Hanging (In-Line)	Brass	Crimp	700 VDC	Polytetrafluoroethylene (PTFE)	IP50	50 Ohms	Silver
LEMO FFS.00.161.MN
LEMO FFS.00.250.CTCE30			Push-Pull	NIM-CAMAC CD/N 549		Crimp	Brass	-55 °C	260 ░C	5000	187 RG-179	Gold	Male Pin Plug	Chrome	Free Hanging (In-Line)	Brass	Crimp	700 VDC	Polytetrafluoroethylene (PTFE)	IP50	50 Ohms	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
