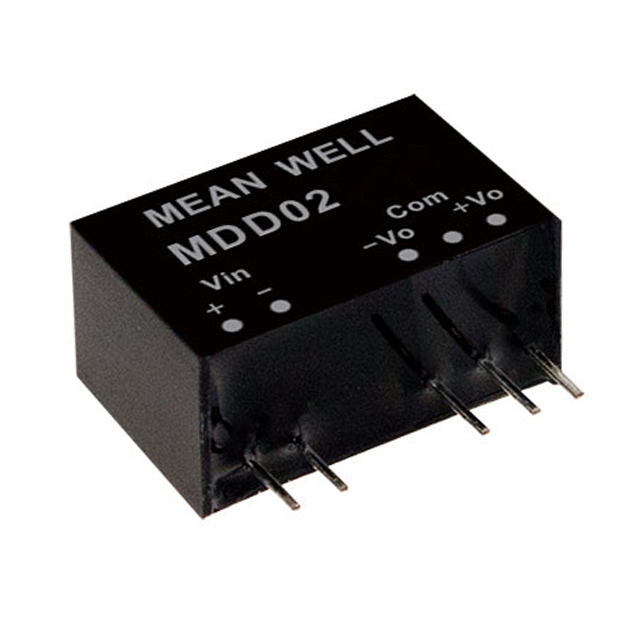

MDD02L-09

Obsolete

MEAN WELL USA Inc.

DC DC CONVERTER +/-9V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MDD02L-09

Obsolete

MEAN WELL USA Inc.

DC DC CONVERTER +/-9V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDD02L-09

Applications	Medical
Current - Output (Max) [Max]	111 mA
Current - Output (Max) [Min]	111 mA
Efficiency	81 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 5 Leads
Power (Watts)	2 W
Supplier Device Package	7-SIP
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	6000 V
Voltage - Output 1	9 V
Voltage - Output 2	-9 V

MDD02 Series

Part	Voltage - Isolation	Mounting Type	Power (Watts)	Voltage - Output 1	Features	Applications	Supplier Device Package	Voltage - Output 2	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)	Number of Outputs	Package / Case	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max)	Current - Output (Max) [Min]	Current - Output (Max) [Max]
MEAN WELL USA Inc. MDD02N-12	6000 V	Through Hole	2 W	12 V	SCP	Medical	7-SIP	-12 V	Isolated Module	85 °C	-40 °C	83 mA	83 mA	2	7-SIP Module 5 Leads	26.4 V	21.6 V
MEAN WELL USA Inc. MDD02L-05	6000 V	Through Hole	2 W	5 V	SCP	Medical	7-SIP	-5 V	Isolated Module	85 °C	-40 °C			2	7-SIP Module 5 Leads	5.5 V	4.5 V	78 %
MEAN WELL USA Inc. MDD02N-05	6000 V	Through Hole	2 W	5 V	SCP	Medical	7-SIP	-5 V	Isolated Module	85 °C	-40 °C			2	7-SIP Module 5 Leads	26.4 V	21.6 V	77 %
MEAN WELL USA Inc. MDD02N-15	6000 V	Through Hole	2 W	15 V	SCP	Medical	7-SIP	-15 V	Isolated Module	85 °C	-40 °C		67 mA	2	7-SIP Module 5 Leads	26.4 V	21.6 V		67 mA
MEAN WELL USA Inc. MDD02L-09	6000 V	Through Hole	2 W	9 V	SCP	Medical	7-SIP	-9 V	Isolated Module	85 °C	-40 °C			2	7-SIP Module 5 Leads	5.5 V	4.5 V	81 %		111 mA	111 mA
MEAN WELL USA Inc. MDD02M-09	6000 V	Through Hole	2 W	9 V	SCP	Medical	7-SIP	-9 V	Isolated Module	85 °C	-40 °C			2	7-SIP Module 5 Leads	13.2 V	10.8 V	83 %		111 mA	111 mA
MEAN WELL USA Inc. MDD02M-05	6000 V	Through Hole	2 W	5 V	SCP	Medical	7-SIP	-5 V	Isolated Module	85 °C	-40 °C			2	7-SIP Module 5 Leads	13.2 V	10.8 V	78 %
MEAN WELL USA Inc. MDD02M-12	6000 V	Through Hole	2 W	12 V	SCP	Medical	7-SIP	-12 V	Isolated Module	85 °C	-40 °C	83 mA	83 mA	2	7-SIP Module 5 Leads	13.2 V	10.8 V	83 %
MEAN WELL USA Inc. MDD02L-15	6000 V	Through Hole	2 W	15 V	SCP	Medical	7-SIP	-15 V	Isolated Module	85 °C	-40 °C		67 mA	2	7-SIP Module 5 Leads	5.5 V	4.5 V	79 %	67 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.57

Description

General part information

MDD02 Series

Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 4.5V - 5.5V Input
