6ES79001EA000XA0

Active

Siemens

SIMATIC S5,SUPPLY CABLE,ANGLED,3

Search across all available documentation for this part.

Active

Siemens

SIMATIC S5,SUPPLY CABLE,ANGLED,3

Technical Specifications

Parameters and characteristics for this part

Specification	6ES79001EA000XA0

1st Connector	CEI 23-50
2nd Connector	IEC 320-C13, Right Angle
Color	Black
Current Rating (Amps)	10 A
Length [x]	9.84 ft
Length [x]	3 m
Number of Conductors	3
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Shielding	Unshielded
Style	Male Pins, Female Sockets

Part	Shielding	Color	Number of Conductors	2nd Connector	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Style	1st Connector	Length [x]	Length [x]	Current Rating (Amps)
Siemens 6ES79001AA000XA0	Unshielded	Black	2	IEC 320-C13 Right Angle	-10 °C	50 °C	Female Sockets Male Pins	CEE 7/7 Right Angle	9.84 ft	3 m	10 A
Siemens 6ES79001EA000XA0	Unshielded	Black	3	IEC 320-C13 Right Angle	-10 °C	50 °C	Female Sockets Male Pins	CEI 23-50	9.84 ft	3 m	10 A
Siemens 6ES79001CA000XA0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 48.84

General part information

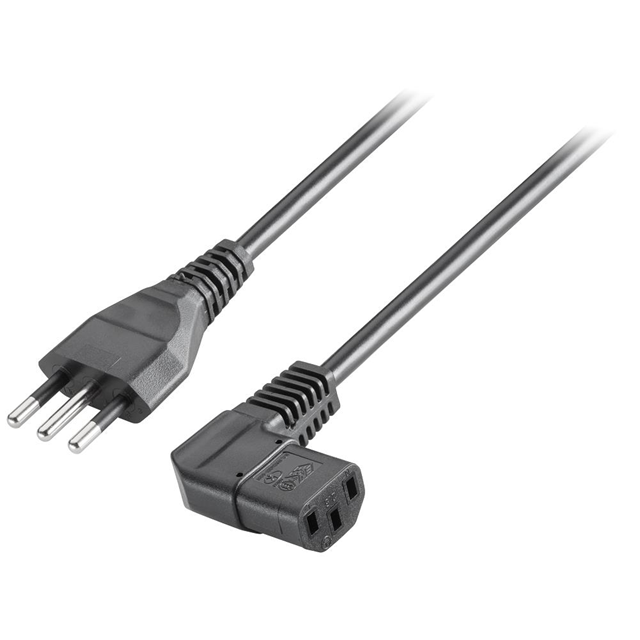

9.84' (3.00m) Power Cord Black CEI 23-50 To IEC 320-C13, Right Angle
