2SA08790Q

Obsolete

Panasonic Industrial Automation Sales

TRANS PNP 200V 0.07A TO92L-A1

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS PNP 200V 0.07A TO92L-A1

Technical Specifications

Parameters and characteristics for this part

Specification	2SA08790Q

Current - Collector (Ic) (Max) [Max]	70 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	60 hFE
Mounting Type	Through Hole
Operating Temperature	150 °C

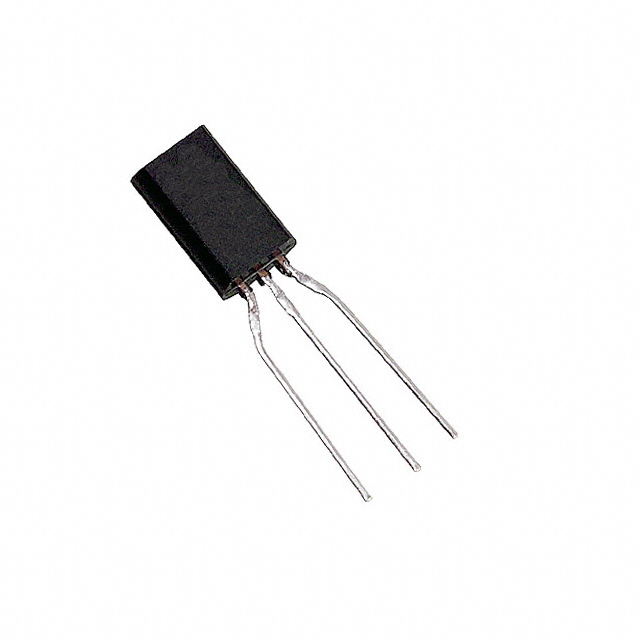

Package / Case	TO-92-3 Long Body, TO-226-3
Power - Max [Max]	1 W
Supplier Device Package	TO-92L-A1
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	1.5 V
Voltage - Collector Emitter Breakdown (Max) [Max]	200 V

Part	Transistor Type	Package / Case	Power - Max [Max]	Operating Temperature	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max) [Max]	Supplier Device Package
Panasonic Industrial Automation Sales 2SA08790Q	PNP	TO-226-3 TO-92-3 Long Body	1 W	150 °C	Through Hole	200 V	60 hFE	1.5 V	70 mA	TO-92L-A1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 200 V 70 mA 80MHz 1 W Through Hole TO-92L-A1
