2994-6602

Active

Amphenol SV Microwave

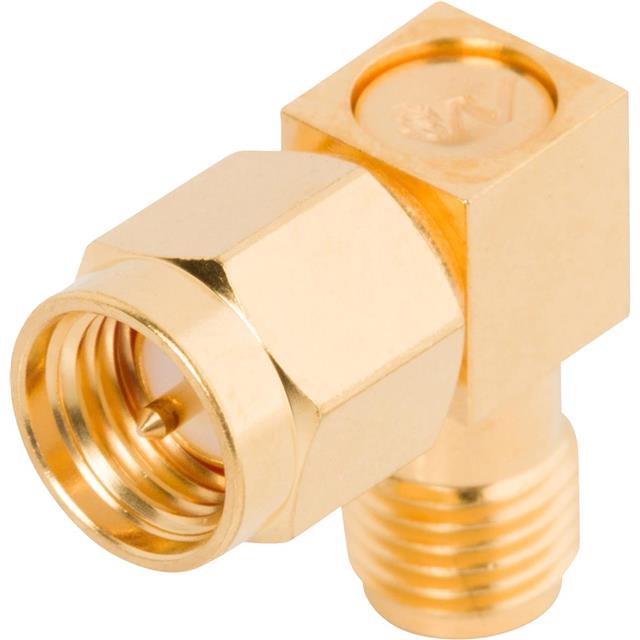

CONN SMA ADAPTER 0HZ TO 18GHZ 50OHM RA RCP/PL GOLD OVER NICKEL TRAY

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA ADAPTER 0HZ TO 18GHZ 50OHM RA RCP/PL GOLD OVER NICKEL TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	2994-6602

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Style	Right Angle

Part	Mating Cycles	Convert From (Adapter End)	Adapter Series	Frequency - Max [Max]	Body Finish	Center Contact Plating	Convert To (Adapter End)	Adapter Type	Impedance	Conversion Type	Center Contact Material	Mounting Type	Body Material	Style	Dielectric Material
Amphenol SV Microwave 2994-6602	500	SMA Plug Male Pin	SMA to SMA	18 GHz	Gold	Gold	Female Socket SMA Jack	Plug to Jack	50 Ohms	Same Series	Beryllium Copper	Free Hanging (In-Line) Right Angle	Stainless Steel	Right Angle	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 104.19

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
