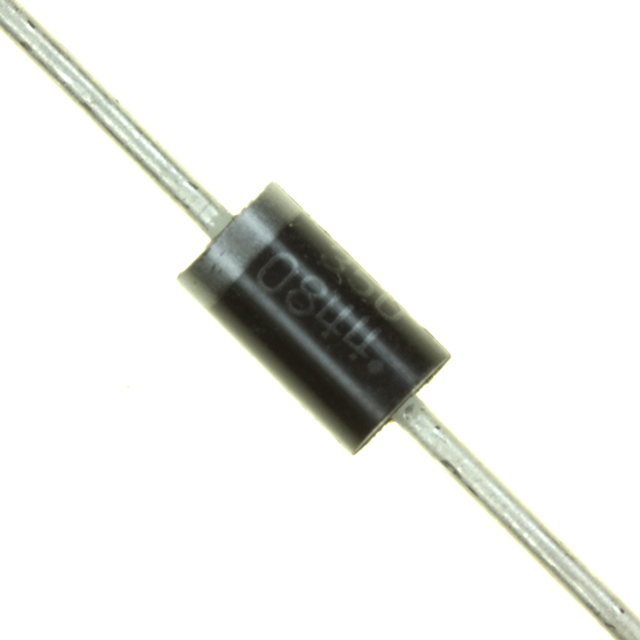

1N5400RL

Obsolete

ON Semiconductor

STANDARD RECOVERY RECTIFIER, 50 V, 3.0 A

Search across all available documentation for this part.

Obsolete

ON Semiconductor

STANDARD RECOVERY RECTIFIER, 50 V, 3.0 A

Technical Specifications

Parameters and characteristics for this part

Specification	1N5400RL

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	170 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Axial, DO-27, DO-201AA
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Axial
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	50 V
Voltage - Forward (Vf) (Max) @ If	1 V

Standard Recovery Rectifier, 50 V, 3.0 A

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Technology	Package / Case	Supplier Device Package	Speed	Speed	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)
ON Semiconductor 1N5400RLG	50 V	1 V	150 °C	-65 C	Through Hole	Standard	Axial DO-201AA DO-27	Axial	Standard Recovery >500ns	200 mA	10 µA	3 A
ON Semiconductor 1N5400RL	50 V	1 V	170 °C	-65 C	Through Hole	Standard	Axial DO-201AA DO-27	Axial	Standard Recovery >500ns	200 mA	10 µA	3 A
ON Semiconductor 1N5400G	50 V	1 V	150 °C	-65 C	Through Hole	Standard	Axial DO-201AA DO-27	Axial	Standard Recovery >500ns	200 mA	10 µA	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

The Standard Recovery Rectifier is designed for use in power supplies and other applications.
