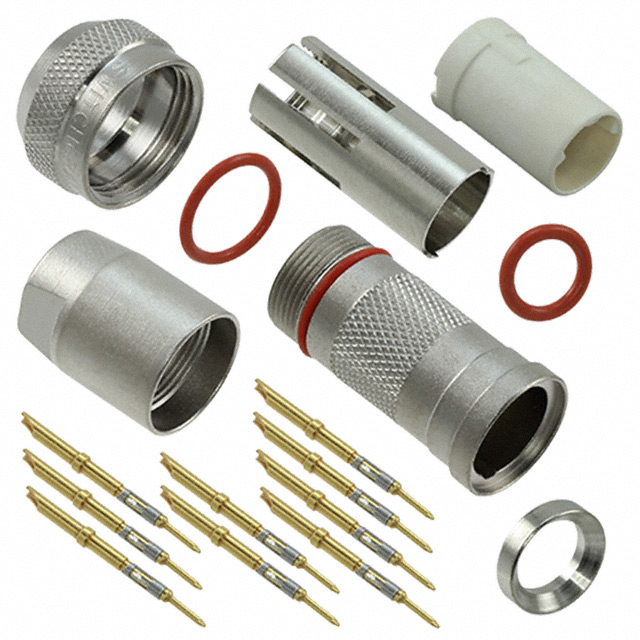

TS2C9M26C - TS2C9M26C

TS2C9M26C

Active
Switchcraft Inc.

CONN CIRCULAR PIN 9 POS CRIMP ST CABLE MOUNT 9 TERMINAL 1 PORT BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
TS2C9M26C - TS2C9M26C

TS2C9M26C

Active
Switchcraft Inc.

CONN CIRCULAR PIN 9 POS CRIMP ST CABLE MOUNT 9 TERMINAL 1 PORT BULK

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationTS2C9M26C
ApplicationsAudio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, PlatingCopper Alloy, Nickel
Cable Opening [Max] [diameter]5.49 mm
Cable Opening [Max] [diameter]0.216 in
Cable Opening [Min] [diameter]4.57 mm
Cable Opening [Min] [diameter]0.18 in
ColorSilver
Connector TypePlug, Male Pins
Contact Finish - MatingGold
Contact MaterialCopper Alloy
FeaturesCoupling Nut, Backshell
Ingress ProtectionIP68, IP66, IP67
Insert MaterialLiquid Crystal Polymer (LCP)
Mounting TypeFree Hanging (In-Line)
Number of Positions9
Operating Temperature [Max]135 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishElectroless Nickel
Shell MaterialCopper Alloy
ShieldingShielded
TerminationCrimp, Solder Cup
Voltage Rating30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 39.43
10$ 39.03
25$ 38.64
DigikeyBulk 25$ 29.74

Description

General part information

TS2C9M Series

9 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
