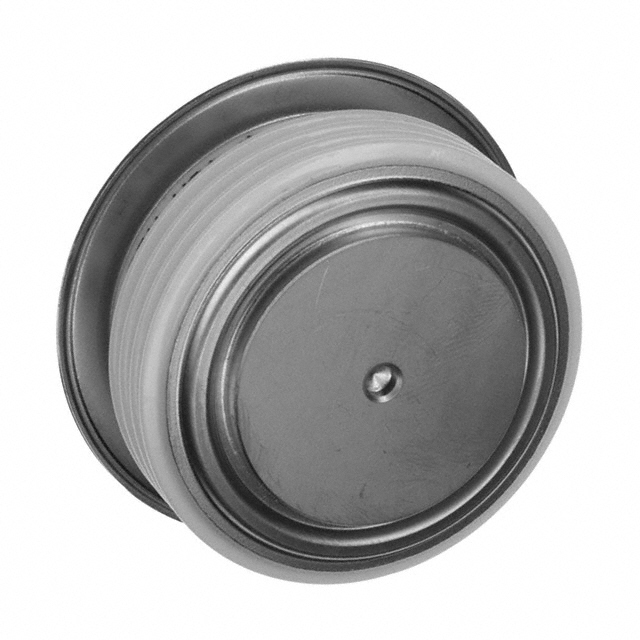

DIODE MODULE, 1.2 KV, 1.2 KA, 1.45 V, SINGLE, DO-200AC, 2 PINS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R9G01212XX

Unknown

Powerex Inc.

DIODE MODULE, 1.2 KV, 1.2 KA, 1.45 V, SINGLE, DO-200AC, 2 PINS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R9G01212XX

Current - Average Rectified (Io)	1200 A
Current - Reverse Leakage @ Vr	150 mA
Mounting Type	Clamp On
Package / Case	B-PUK, DO-200AB
Reverse Recovery Time (trr)	25 µs
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-200AB, B-PUK
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.45 V

R9G01212 Series

Part	Supplier Device Package	Current - Average Rectified (Io)	Mounting Type	Speed	Speed	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Technology	Voltage - Forward (Vf) (Max) @ If
Powerex Inc. R9G01212XX	B-PUK DO-200AB	1200 A	Clamp On	Standard Recovery >500ns	200 mA	B-PUK DO-200AB	1.2 kV	150 mA	25 µs	Standard	1.45 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 170.07

Description

General part information

R9G01212 Series

The R9G01212XX is a general purpose Rectifier Diode designed for high blocking voltage capability with low forward voltage to minimize conduction losses. It can be mounted using commercially available clamps and heat-sinks.
