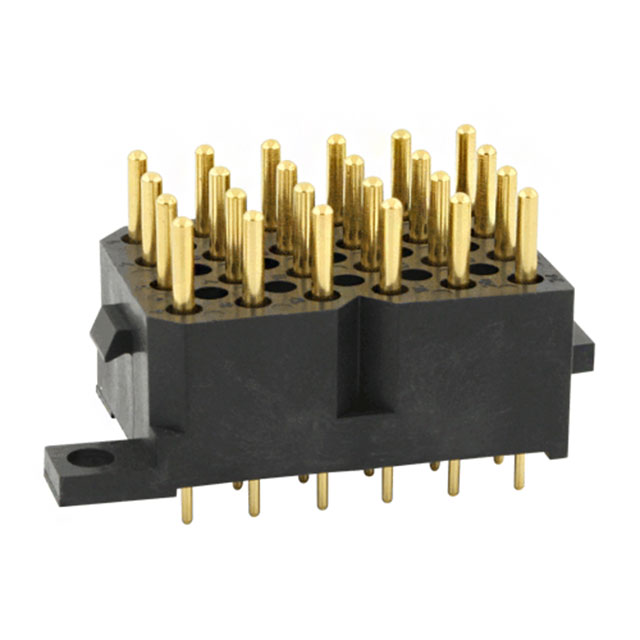

SMS24RE4TR29

Active

Souriau-Sunbank by Eaton

CONN HEADER VERT 24POS 5.08MM

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN HEADER VERT 24POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	SMS24RE4TR29

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Mating	0.28 in
Contact Length - Mating	7.11 mm
Contact Length - Post	0.173 in
Contact Length - Post	4.4 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Features	Mounting Flange
Ingress Protection	IP40
Insulation Color	Black
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.972 in
Overall Contact Length	24.7 mm
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Row Spacing - Mating [x]	5.08 mm
Row Spacing - Mating [x]	0.2 "
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder

Part	Features	Current Rating (Amps)	Contact Material	Contact Length - Post	Contact Length - Post	Ingress Protection	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Style	Number of Rows	Contact Finish - Post	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Number of Positions Loaded	Contact Shape	Number of Positions	Overall Contact Length	Overall Contact Length	Insulation Material	Shrouding	Contact Length - Mating	Contact Length - Mating
Souriau-Sunbank by Eaton SMS24RE3TR29	Mounting Flange	5 A	Copper Alloy	0.173 in	4.4 mm	IP40	5.08 mm	0.2 in	UL94 V-0	105 ░C	-55 °C	Female Socket	Solder	118.1 µin	3 µm	Receptacle	3 µm	118.1 µin	Through Hole	Board to Board Cable	6	Tin	Black	5.08 mm	0.2 "	Locking Ramp	All	Circular	24
Souriau-Sunbank by Eaton SMS24RE4TR29	Mounting Flange	5 A	Copper Alloy	0.173 in	4.4 mm	IP40	5.08 mm	0.2 in	UL94 V-0	125 °C	-55 °C	Male Pin	Solder	118.1 µin	3 µm	Header	3 µm	118.1 µin	Through Hole	Board to Cable/Wire	6	Tin	Black	5.08 mm	0.2 "	Locking Ramp	All	Circular	24	0.972 in	24.7 mm	Polyester Glass Filled	Unshrouded	0.28 in	7.11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.47

General part information

Connector Header Through Hole 24 position 0.200" (5.08mm)
