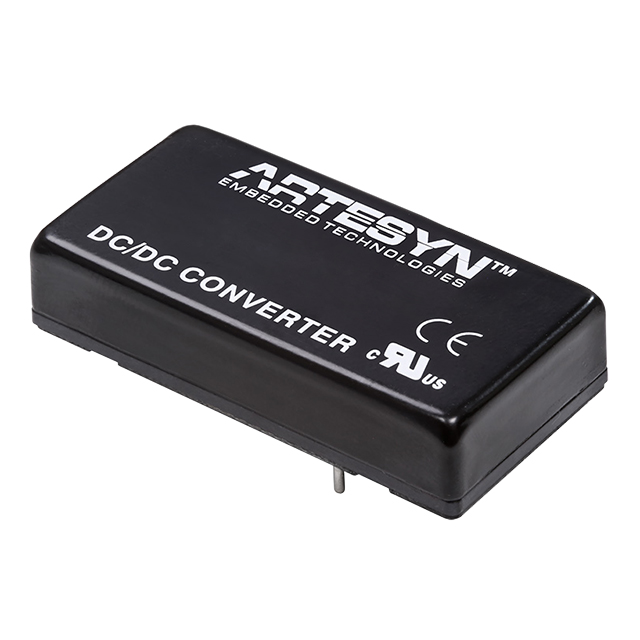

ERM01C18
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 15V 20W
Deep-Dive with AI
Search across all available documentation for this part.
ERM01C18
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 15V 20W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ERM01C18 |
|---|---|
| Applications | Railway |
| Current - Output (Max) [Max] | 1.33 A |
| Efficiency | 87 % |
| Features | OVP, OCP, OTP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.43 " |
| Size / Dimension [z] | 11 mm |
| Supplier Device Package | 6-DIP |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 100 | $ 48.55 | |
Description
General part information
ERM01C Series
Isolated Module DC DC Converter 1 Output 15V 1.33A 9V - 36V Input
