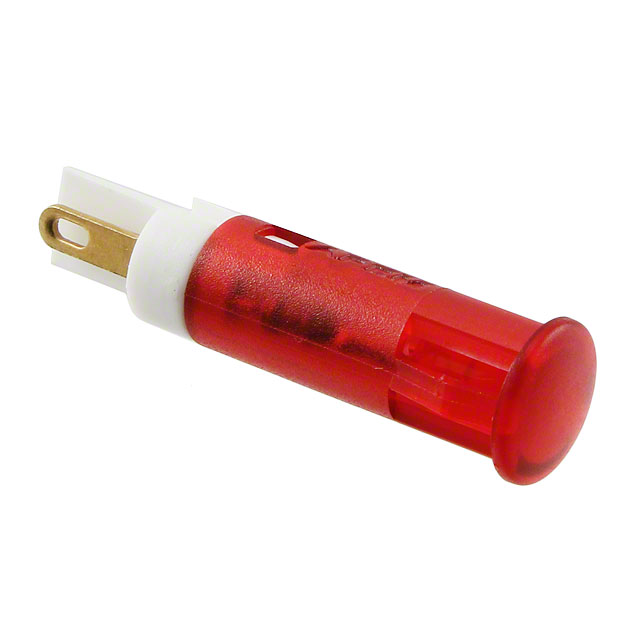

QS61XXR24
ActiveAPEM
INDICATOR 6MM FIXED RED 24V SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QS61XXR24
ActiveAPEM
INDICATOR 6MM FIXED RED 24V SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QS61XXR24 |
|---|---|
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size [diameter] | 7.2 mm Dia |
| Lens Style | Round with Convex Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 25 mcd |
| Panel Cutout Dimensions [diameter] | 0.24 in |
| Panel Cutout Dimensions [diameter] | 6 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Solder Lug |
| Type | LED |
| Viewing Angle | 30 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.63 | |
| 10 | $ 4.69 | |||
| 100 | $ 3.84 | |||
| 500 | $ 3.24 | |||
| 1000 | $ 2.97 | |||
| 2000 | $ 2.85 | |||
Description
General part information
QS61XXR Series
LED Panel Indicator Red Diffused 30° 24V 20mA Solder Lug
