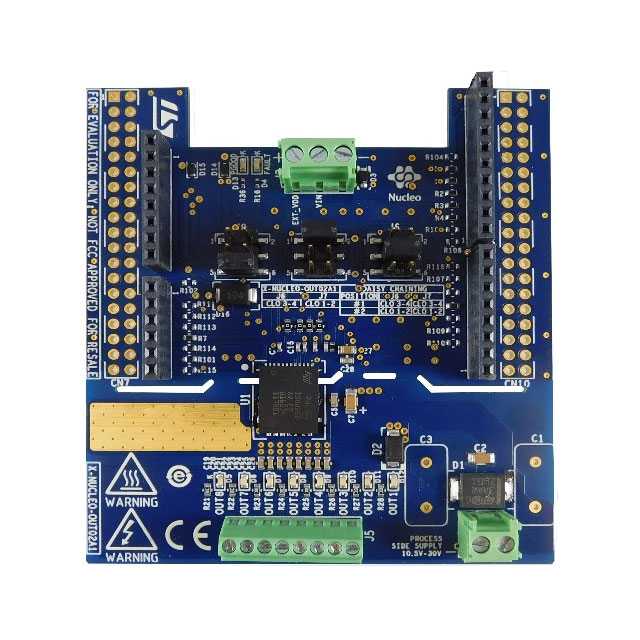

X-NUCLEO-OUT02A1
ActiveINDUSTRIAL DIGITAL OUTPUT EXPANSION BOARD BASED ON ISO8200AQ FOR STM32 NUCLEO
Deep-Dive with AI
Search across all available documentation for this part.
X-NUCLEO-OUT02A1
ActiveINDUSTRIAL DIGITAL OUTPUT EXPANSION BOARD BASED ON ISO8200AQ FOR STM32 NUCLEO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | X-NUCLEO-OUT02A1 |
|---|---|
| Contents | Board(s) |
| Function | Driver |
| Interconnect System | ST Morpho, Arduino R3 Shield |
| Platform | Nucleo |
| Type | Power Management |
| Utilized IC / Part | ISO8200AQ |
X-NUCLEO-OUT02A1 Series
Industrial digital output expansion board based on ISO8200AQ for STM32 Nucleo
| Part | Mounting Type | Features | Package / Case | Interface | Fault Protection | Ratio - Input:Output [custom] | Current - Output (Max) [Max] | Switch Type | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Voltage - Load [Max] | Voltage - Load [Min] | Supplier Device Package | Rds On (Typ) | Utilized IC / Part | Interconnect System | Contents | Type | Function | Platform | Primary Attributes | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics | Surface Mount | Auto Restart Galvanic Isolation Status Flag | 36-PowerBSSOP | Parallel | Current Limiting (Fixed) Over Temperature | 1:1 | 700 mA | Relay Solenoid Driver | 8 | -40 °C | 125 ¯C | High Side | 36 V | 10.5 V | PowerSO-36 Slug Up | 120 mOhm | ||||||||
STMicroelectronics | ISO8200AQ | Arduino R3 Shield ST Morpho | Board(s) | Power Management | Driver | Nucleo | ||||||||||||||||||
STMicroelectronics | ISO8200B | Board(s) | Power Management | High Side Driver (Internal FET) | 8-Channel (Octal) | Board(s) | ||||||||||||||||||
STMicroelectronics | Surface Mount | Auto Restart Galvanic Isolation Status Flag | 36-PowerBSSOP | Parallel | Current Limiting (Fixed) Over Temperature | 1:1 | 700 mA | Relay Solenoid Driver | 8 | -40 °C | 125 ¯C | High Side | 36 V | 10.5 V | PowerSO-36 Slug Up | 120 mOhm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
X-NUCLEO-OUT02A1 Series
The STEVAL-IFP015V2 demonstration board works in combination with the STEVAL-PCC009V2 or STEVAL-PCC009V1 interface board to allow evaluation of all the features of the ISO8200B device. A large GND area on the printed circuit board has been designed to minimize noise effects and ensure good thermal performance.
The ISO8200B is a galvanic isolated 8 channel driver featuring a very low supply current. It contains 2 independent galvanic isolated voltage domains (VCCfor the power stage and VDDfor the digital stage). The IC is intended to drive any type of load with one side connected to ground. Active channel current limitation combined with thermal shutdown, independent for each channel, and automatic restart protect the device against overload. Additional embedded functions are: loss of GND protection which automatically turns off the outputs in case of analog ground, undervoltage shutdown with hysteresis, and reset function for immediate power output shutdown.
Built-in thermal shutdown protects the chip against overtemperature and short-circuit. In overload condition, the channel turns off, then back on automatically after the IC temperature has decreased below a reset threshold. If this condition causes the case temperature to reach the TCR limit, the overloaded channel is turned off and will restart only when case and junction temperature have decreased down to the reset threshold. Non overloaded channels continue to operate normally.
