Q-0405G0003072i
ActiveAmphenol Custom Cable

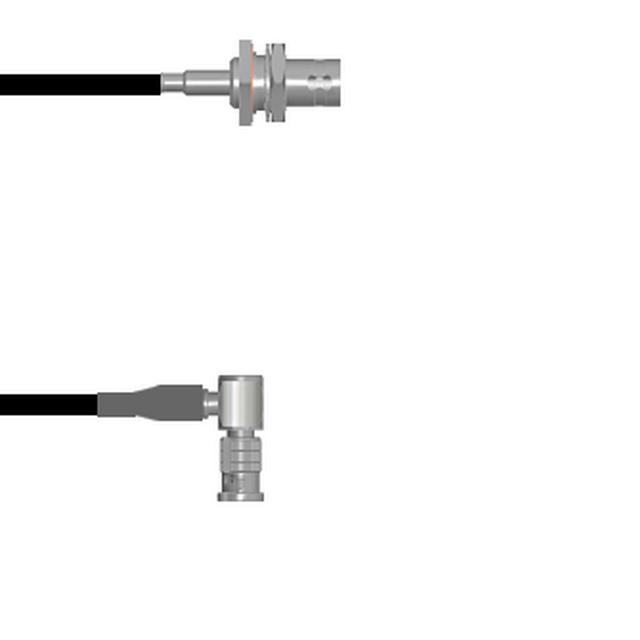

CBL ASSY BNC-HDBNC JACK-PLUG 6'
Deep-Dive with AI
Search across all available documentation for this part.
Q-0405G0003072i
ActiveAmphenol Custom Cable
CBL ASSY BNC-HDBNC JACK-PLUG 6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0405G0003072i |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | HD-BNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 6 ft |
| Length | 72 in |
| Length | 1.8 m |
| Overall Impedance | 50 Ohms |
| Style | BNC to HD-BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 127.93 | |
| 25 | $ 125.47 | |||
| 50 | $ 123.01 | |||
| 100 | $ 120.55 | |||
| 250 | $ 118.09 | |||
Description
General part information
Q-0405G0 Series
Cable Assembly Coaxial BNC to HD-BNC RG-174 72.0" (1.8m) 6.0'
Documents
Technical documentation and resources
No documents available
