BA6209N

Obsolete

Rohm Semiconductor

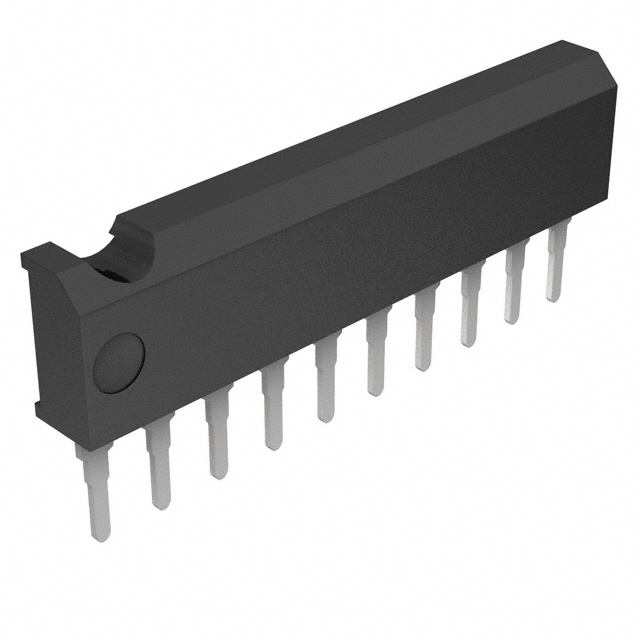

BRUSH DC MOTOR CONTROLLER, 1.6A, BIPOLAR, PSIP10, SIP-10

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

BRUSH DC MOTOR CONTROLLER, 1.6A, BIPOLAR, PSIP10, SIP-10

Technical Specifications

Parameters and characteristics for this part

Specification	BA6209N

Applications	Media Player
Current - Output	1.6 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Brushed DC
Mounting Type	Through Hole
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (2)
Package / Case	10-SIP
Supplier Device Package	10-SIP
Technology	CMOS
Voltage - Load [Max]	7.2 V
Voltage - Load [Min]	6.6 V
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	6 V

Part	Output Configuration	Mounting Type	Interface	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Package / Case	Technology	Current - Output	Motor Type - AC, DC	Function
Rohm Semiconductor BA6209N	Half Bridge (2)	Through Hole	Parallel	6.6 V	7.2 V	18 V	6 V	10-SIP	75 °C	-20 °C	Media Player	10-SIP	CMOS	1.6 A	Brushed DC	Driver - Fully Integrated Control and Power Stage
Rohm Semiconductor BA6209	Half Bridge (2)	Through Hole	Parallel	6.6 V	7.2 V	18 V	6 V	10-HSIP	75 °C	-20 °C	Media Player	10-SIP Exposed Tab	CMOS	1.6 A	Brushed DC	Driver - Fully Integrated Control and Power Stage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power transistors can handle a large current (1.6A maximally).

Brake is applied when stopping the motor.

Built-in function to absorb rush currents generated by reversing and braking.
