02K119-K00E3

Active

Rosenberger

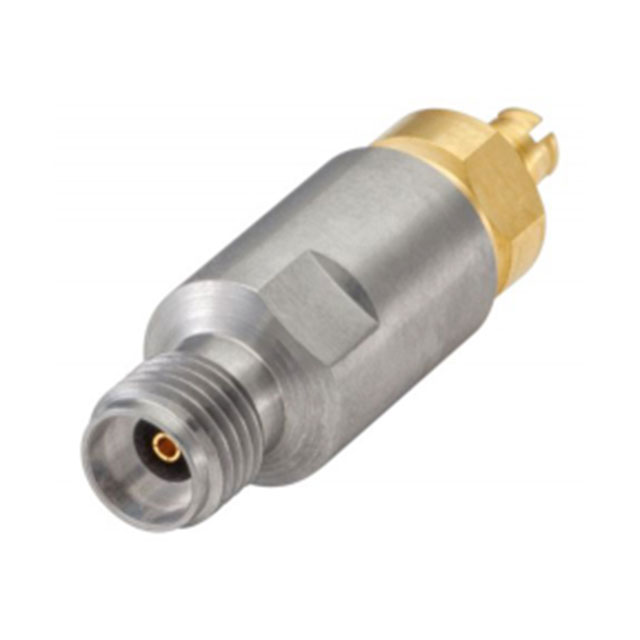

ADAPT 2.92MM JACK - SMP JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT 2.92MM JACK - SMP JACK

Technical Specifications

Parameters and characteristics for this part

Specification	02K119-K00E3

Adapter Series	SMP to RPC-2.92
Adapter Type	Jack to Jack
Body Finish	Gold; Passivated
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	2.92 mm
Convert From (Adapter End)	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	Female Socket, SMP Jack
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	For Use With/Related Products	Type	Specifications	Accessory Type	Center Contact Material	Style	Adapter Series	Body Finish	Frequency - Max [Max]	Fastening Type	Convert From (Adapter End)	Convert From (Adapter End)	Adapter Type	Center Contact Plating	Body Material	Impedance	Dielectric Material	Conversion Type	Convert To (Adapter End)	Mounting Type	Center Gender
Rosenberger 02K119-K20D3	Network Analyzer	Specialized	2.92 Jack SMP Jack	Calibration Adapter
Rosenberger 02K119-K00E3					Beryllium Copper	Straight	SMP to RPC-2.92	Gold; Passivated	40 GHz	Snap-On Threaded	2.92 mm	Jack Female Socket OS-2.9	Jack to Jack	Gold	Beryllium Copper Stainless Steel	50 Ohms	Polyetheretherketone (PEEK)	Between Series	Female Socket SMP Jack	Free Hanging (In-Line)	Female to Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
