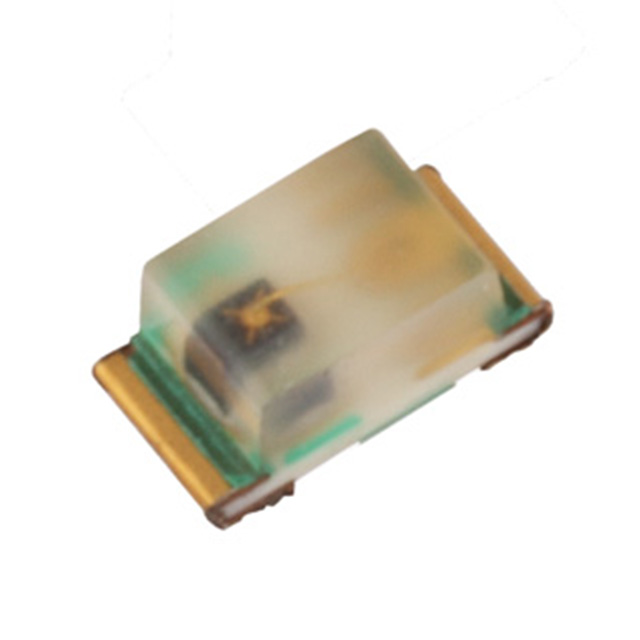

TDN1111C-TR
ActiveStanley Electric Co
LED LAMP 1608
Deep-Dive with AI
Search across all available documentation for this part.
TDN1111C-TR
ActiveStanley Electric Co
LED LAMP 1608
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TDN1111C-TR |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | Top View |
| Package / Case | 0603 (1608 Metric) |
| Radiant Intensity (Ie) Min @ If [Min] | 1 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 125 ° |
| Voltage - Forward (Vf) (Typ) | 1.4 V |
| Wavelength | 870 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.42 | |||
| 100 | $ 0.28 | |||
| 1000 | $ 0.22 | |||
| 2000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.42 | |||
| 100 | $ 0.28 | |||
| 1000 | $ 0.22 | |||
| 2000 | $ 0.19 | |||
| Tape & Reel (TR) | 4000 | $ 0.16 | ||
Description
General part information
TDN1111 Series
Infrared (IR) Emitter 870nm 1.4V 50mA 1mW/sr @ 20mA 125° 0603 (1608 Metric)
Documents
Technical documentation and resources
No documents available
