H659V,TRRD

Active

Serpac

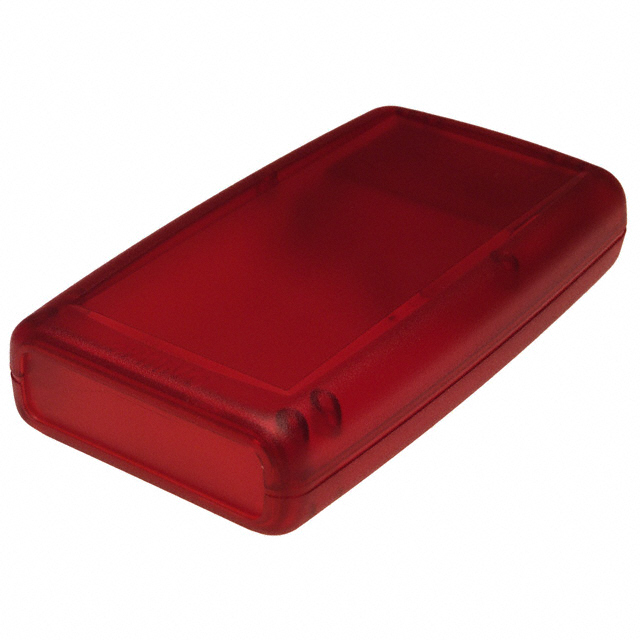

BOX ABS TRN RED 4.94"L X 2.75"W

Deep-Dive with AI

Search across all available documentation for this part.

H659V,TRRD

Active

Serpac

BOX ABS TRN RED 4.94"L X 2.75"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H659V,TRRD

Area (L x W)	13.6 in˛
Area (L x W)	88 cm²
Color	Translucent - Red
Container Type	Box
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	23.88 mm
Height [z]	0.94 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	125.48 mm, 4.94 "
Size / Dimension [y]	69.85 mm
Thickness	2.03 mm
Thickness	0.08 "
Weight	0.11 lb
Weight	49.9 g

H659 Series

Part	Color	Area (L x W)	Area (L x W)	Material	Size / Dimension [y]	Size / Dimension [x]	Ratings	Features	Features	Weight	Weight	Thickness	Thickness	Material Flammability Rating	Height [z]	Height [z]	Container Type
Serpac H659V,TRGY	Translucent - Gray	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	IP40	Battery Compartment PCB Supports	9 V	0.11 lb	49.9 g	2.03 mm	0.08 "	UL94 HB	23.88 mm	0.94 in	Box
Serpac H659V,TRGR	Translucent - Green	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	IP40	Battery Compartment PCB Supports	9 V	0.11 lb	49.9 g	2.03 mm	0.08 "	UL94 HB	23.88 mm	0.94 in	Box
Serpac H659V,BK	Black	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	IP40	Battery Compartment PCB Supports	9 V	0.11 lb	49.9 g	2.03 mm	0.08 "	UL94 HB	23.88 mm	0.94 in	Box
Serpac H659VPC,TRGR	Translucent - Green	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	IP40	9V Battery Compartment PCB Supports Pocket Clip		0.117 lb	53.07 g	2.03 mm	0.08 "	UL94 HB	23.88 mm	0.94 in	Box
Serpac H659V,TRRD	Translucent - Red	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	IP40	Battery Compartment PCB Supports	9 V	0.11 lb	49.9 g	2.03 mm	0.08 "	UL94 HB	23.88 mm	0.94 in	Box
Serpac H659V,TRBL	Translucent - Blue	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	IP40	Battery Compartment PCB Supports	9 V	0.11 lb	49.9 g	2.03 mm	0.08 "	UL94 HB	23.88 mm	0.94 in	Box
Serpac H659VPC,BK	Black	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	IP40	9V Battery Compartment PCB Supports Pocket Clip		0.117 lb	53.07 g	2.03 mm	0.08 "	UL94 HB	23.88 mm	0.94 in	Box
Serpac H659VPC,AL	Almond	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	IP40	9V Battery Compartment PCB Supports Pocket Clip		0.117 lb	53.07 g	2.03 mm	0.08 "	UL94 HB	23.88 mm	0.94 in	Box

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.31
		5	$ 13.10
		10	$ 12.55
		25	$ 12.15
		50	$ 11.99
		100	$ 11.89
		250	$ 11.82
		500	$ 11.79

Description

General part information

H659 Series

Box Plastic, ABS Translucent - Red Hand Held, Split Sides and End Panel(s) 4.940" L x 2.750" W (125.48mm x 69.85mm) X 0.940" (23.88mm)

Documents

Technical documentation and resources

No documents available
