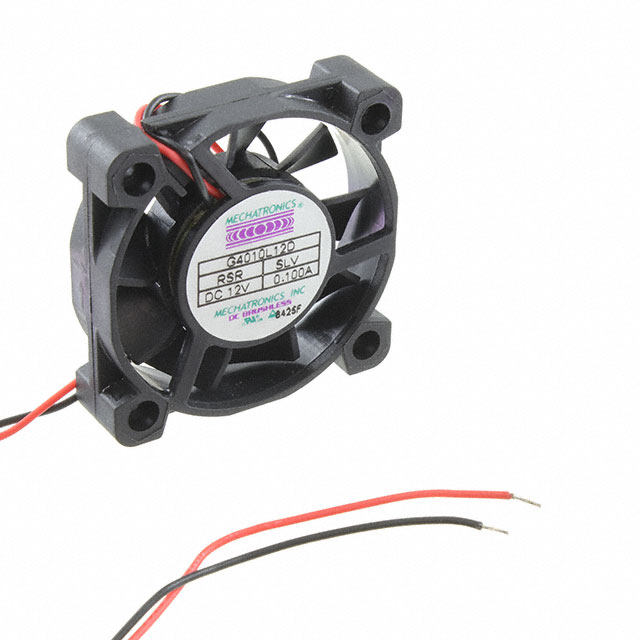

G4010L12D-RSR
ActiveMechatronics Bearing Group
FAN AXIAL 40X10.3MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
G4010L12D-RSR
ActiveMechatronics Bearing Group
FAN AXIAL 40X10.3MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G4010L12D-RSR |
|---|---|
| Air Flow | 6 CFM |
| Air Flow | 0.168 m³/min |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Sleeve |
| Current Rating (Amps) | 100 mA |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP) |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 22 dB(A) |
| RPM | 5000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 0.11 in H2O |
| Static Pressure | 27.4 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Weight | 11.79 g |
| Weight | 0.026 lb |
| Width [y] | 10.3 mm |
G4010 Series
| Part | Features | Material - Blade | Bearing Type | Voltage - Rated | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Noise | Termination | Current Rating (Amps) | Approval Agency | Static Pressure | Static Pressure | RPM | Width [y] | Weight | Weight | Fan Type | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Bearing Group | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | Ball | 24 VDC | 40 mm | Square | 40 mm | 22 dB(A) | 2 Wire Leads | 70 mA | CE cUL TUV UL | 0.11 in H2O | 27.4 Pa | 5000 RPM | 10.3 mm | 11.79 g | 0.026 lb | Tubeaxial | ||
Mechatronics Bearing Group | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | Ball | 12 VDC | 40 mm | Square | 40 mm | 28 dB | 2 Wire Leads | 150 mA | CE cUL TUV UL | 6000 RPM | 10.3 mm | 11.79 g | 0.026 lb | Tubeaxial | 7 CFM | 0.196 mł/min | ||
Mechatronics Bearing Group | Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | Ball | 5 V | 40 mm | Square | 40 mm | 35 dB | 4 Wire Leads | 400 mA | CE cUL TUV UL | 0.25 in H2O | 62.3 Pa | 8000 RPM | 10.3 mm | 11.79 g | 0.026 lb | Tubeaxial | 9 CFM | 0.252 mł/min |
Mechatronics Bearing Group | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | Ball | 5 V | 40 mm | Square | 40 mm | 21 dB(A) | 2 Wire Leads | 0.09 A | CE cUL TUV UL | 0.07 in H2O | 17.4 Pa | 4000 RPM | 10.3 mm | 11.79 g | 0.026 lb | Tubeaxial | 5 CFM | 0.14 mł/min |
Mechatronics Bearing Group | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | Ball | 12 VDC | 40 mm | Square | 40 mm | 22 dB(A) | 2 Wire Leads | 100 mA | CE cUL TUV UL | 0.11 in H2O | 27.4 Pa | 5000 RPM | 10.3 mm | 11.79 g | 0.026 lb | Tubeaxial | 6 CFM | 0.168 m³/min |
Mechatronics Bearing Group | Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | Ball | 12 VDC | 40 mm | Square | 40 mm | 35 dB | 4 Wire Leads | 0.22 A | CE cUL TUV UL | 0.25 in H2O | 62.3 Pa | 8000 RPM | 10.3 mm | 11.79 g | 0.026 lb | Tubeaxial | 9 CFM | 0.252 mł/min |
Mechatronics Bearing Group | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | Ball | 5 V | 40 mm | Square | 40 mm | 35 dB | 2 Wire Leads | 0.22 A | CE cUL TUV UL | 0.25 in H2O | 62.3 Pa | 8000 RPM | 10.3 mm | 11.79 g | 0.026 lb | Tubeaxial | 9 CFM | 0.252 mł/min |
Mechatronics Bearing Group | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | Ball | 24 VDC | 40 mm | Square | 40 mm | 35 dB | 2 Wire Leads | CE cUL TUV UL | 0.25 in H2O | 62.3 Pa | 8000 RPM | 10.3 mm | 11.79 g | 0.026 lb | Tubeaxial | 9 CFM | 0.252 mł/min | |
Mechatronics Bearing Group | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | Sleeve | 5 V | 40 mm | Square | 40 mm | 28 dB | 2 Wire Leads | 0.24 A | CE cUL TUV UL | 6000 RPM | 10.3 mm | 11.79 g | 0.026 lb | Tubeaxial | 7 CFM | 0.196 mł/min | ||
Mechatronics Bearing Group | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | Sleeve | 12 VDC | 40 mm | Square | 40 mm | 22 dB(A) | 2 Wire Leads | 100 mA | CE cUL TUV UL | 0.11 in H2O | 27.4 Pa | 5000 RPM | 10.3 mm | 11.79 g | 0.026 lb | Tubeaxial | 6 CFM | 0.168 m³/min |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.12 | |
Description
General part information
G4010 Series
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Sleeve 6.0 CFM (0.168m³/min) 2 Wire Leads
