181-24008

Active

HELLERMANNTYTON

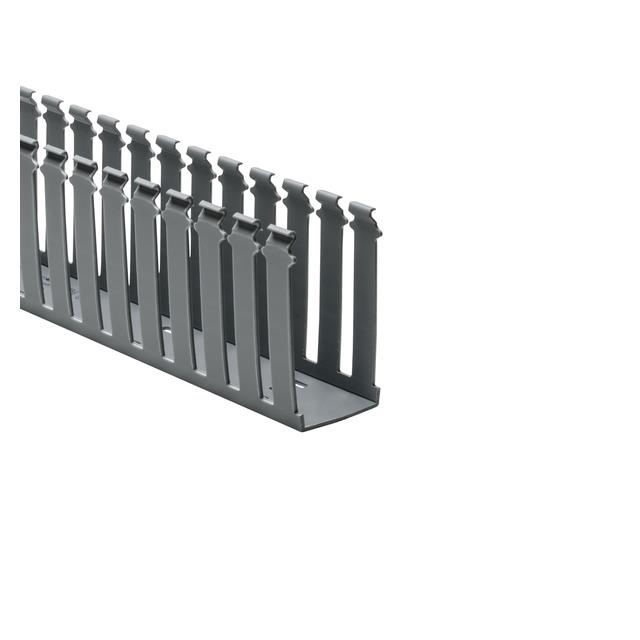

SLOTTED WALL WIRING DUCT, 2" X 4", NON-ADHESIVE, PVC, GRAY, 120FT/CARTON

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SLOTTED WALL WIRING DUCT, 2" X 4", NON-ADHESIVE, PVC, GRAY, 120FT/CARTON

Technical Specifications

Parameters and characteristics for this part

Specification	181-24008

Color	Gray
Features	Pre-Punched Mounting Holes, Self Extinguishing
Height [z]	4.008 in
Height [z]	101.8 mm
Length	6 ft
Length	1.83 m
Material	Poly-Vinyl Chloride (PVC)
Mounting Type	Screw
Width [x]	2 in
Width [x]	50.8 mm
Wire Duct Type	Slotted (Raceway), Base

Part	Color	Features	Length	Length	Height [z]	Height [z]	Mounting Type	Material	Width [x]	Width [x]	Wire Duct Type
HELLERMANNTYTON 181-24014	White	Pre-Punched Mounting Holes Self Extinguishing	6 ft	1.83 m	4.008 in	101.8 mm	Adhesive Screw	Poly-Vinyl Chloride (PVC)	2 in	50.8 mm	Base Slotted (Raceway)
HELLERMANNTYTON 181-24008	Gray	Pre-Punched Mounting Holes Self Extinguishing	6 ft	1.83 m	4.008 in	101.8 mm	Screw	Poly-Vinyl Chloride (PVC)	2 in	50.8 mm	Base Slotted (Raceway)
HELLERMANNTYTON 181-24006	Blue	Pre-Punched Mounting Holes Self Extinguishing	6 ft	1.83 m	4.008 in	101.8 mm	Screw	Poly-Vinyl Chloride (PVC)	2 in	50.8 mm	Base Slotted (Raceway)
HELLERMANNTYTON 181-24010	White	Pre-Punched Mounting Holes Self Extinguishing	6 ft	1.83 m	4.008 in	101.8 mm	Screw	Poly-Vinyl Chloride (PVC)	2 in	50.8 mm	Base Slotted (Raceway)
HELLERMANNTYTON 181-24011	White	Pre-Punched Mounting Holes Self Extinguishing	6 ft	1.83 m	4.008 in	101.8 mm	Screw	Poly-Vinyl Chloride (PVC)	2 in	50.8 mm	Base Slotted (Raceway)
