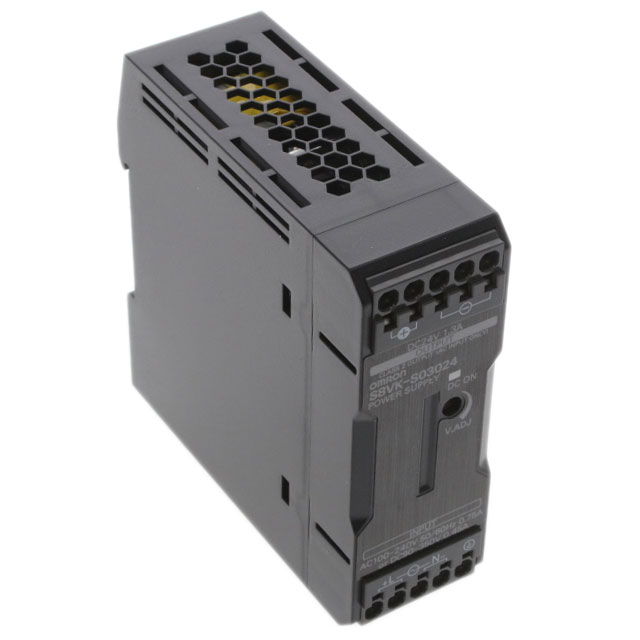

S8VK-S03024

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 31W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 31W

Technical Specifications

Parameters and characteristics for this part

Specification	S8VK-S03024

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output (Max) [Max]	1.3 A
DC Voltage - Input (Max) [Max]	350 V
DC Voltage - Input (Min) [Min]	90 V
Efficiency	86 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC or DC
Number of Outputs	1
Power (Watts)	31 W
Size / Dimension [x]	3.54 in
Size / Dimension [x]	90 mm
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.54 "
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Input Type	Voltage - Output 1	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Features	Applications	DC Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Current - Output (Max) [Max]	Power (Watts)	DC Voltage - Input (Max) [Max]
Omron Electronics Inc-EMC Div S8VK-S03024	AC or DC	24 V	85 VAC	264 VAC	CE cURus TUV	90 mm	3.54 in	32 mm	1.26 in	3.54 "	90 mm	3000 V	Adjustable Output PFC Universal Input	ITE (Commercial)	90 V	1	86 %	1.3 A	31 W	350 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 31W
