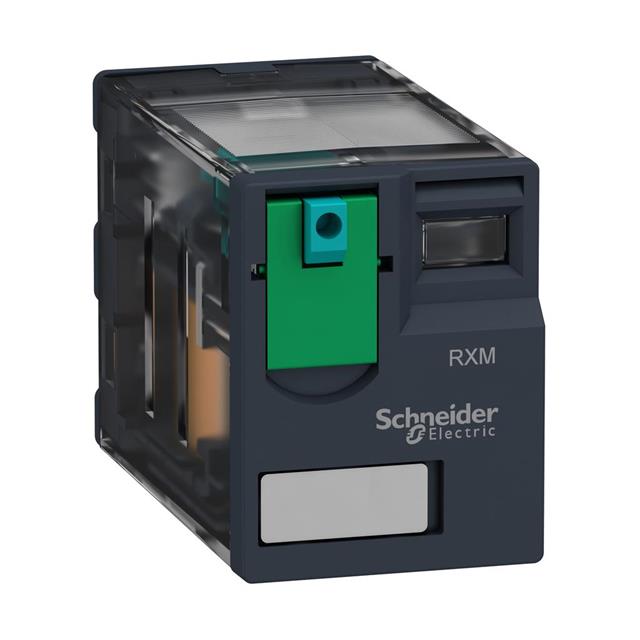

RXM4AB1JD

Active

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, MINIATURE PLUG-IN RELAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN +3

RXM4AB1JD

Active

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, MINIATURE PLUG-IN RELAY

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RXM4AB1JD

Approval Agency	CE, IECEE, Lloyd's, GOST, UL, CSA
Coil Current	75 mA
Coil Resistance	160 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	5 A
Features	Lighted Indicator
Load - Max Switching	140 W, 1250 VA
Mounting Type	Socketable
Must Operate Voltage	9.6 VDC
Must Release Voltage	1.2 VDC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 28 VDC
Termination Style	Plug In

RXM4A Series

Part	Release Time	Contact Material	Must Operate Voltage	Contact Rating (Current)	Must Release Voltage	Termination Style	Coil Current	Mounting Type	Operate Time	Contact Form	Load - Max Switching	Features	Relay Type	Switching Voltage	Coil Voltage	Coil Type	Approval Agency	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]
SQUARE D BY SCHNEIDER ELECTRIC RXM4AB1JD	20 ms	Silver Nickel (AgNi)	9.6 VDC	5 A	1.2 VDC	Plug In	75 mA	Socketable	20 ms	4PDT (4 Form C)	140 W 1250 VA	Lighted Indicator	General Purpose	28 VDC 250 VAC	12 VDC	Non Latching	CE CSA GOST IECEE Lloyd's UL	160 Ohms	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC RXM4AB1MD	20 ms	Silver Nickel (AgNi)	176 VDC	6 A	22 VDC	Plug In	4.5 mA	Socketable	20 ms	4PDT (4 Form C)	168 W 1500 VA	Test Button	General Purpose	28 VDC 250 VAC	220 VDC	Non Latching	CE CSA GOST IECEE Lloyd's UL	48.4 kOhms	-40 °C	85 °C
SQUARE D BY SCHNEIDER ELECTRIC RXM4AB1FD	20 ms	Silver Nickel (AgNi)	88 VDC	6 A	11 VDC	Plug In	8.2 mA	Socketable	20 ms	4PDT (4 Form C)	168 W 1500 VA		General Purpose	28 VDC 250 VAC	110 VDC	Non Latching	CE CSA GOST IECEE Lloyd's UL	13.44 kOhms	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC RXM4AB3BD	20 ms	Silver Nickel (AgNi)	19.2 VDC	5 A	2.4 VDC	Plug In	36.9 mA	Socketable	20 ms	4PDT (4 Form C)	140 W 1250 VA	Lighted Indicator	General Purpose	28 VDC 250 VAC	24 VDC	Non Latching	CE CSA GOST IECEE Lloyd's UL	650 Ohms	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC RXM4AB3P7	20 ms	Silver Nickel (AgNi)	184 VAC	6 A	34.5 VAC	Plug In	15.3 mA	Socketable	20 ms	4PDT (4 Form C)	168 W 1500 VA	Lighted Indicator	General Purpose	28 VDC 250 VAC	230 VAC	Non Latching	CE CSA GOST IECEE Lloyd's UL	15 kOhms	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC RXM4AB2BD	20 ms	Silver Nickel (AgNi)	19.2 VDC	5 A	2.4 VDC	Plug In	36.9 mA	Socketable	20 ms	4PDT (4 Form C)	140 W 1250 VA	Lighted Indicator Test Button	General Purpose	28 VDC 250 VAC	24 VDC	Non Latching	CE CSA GOST IECEE Lloyd's UL	650 Ohms	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC RXM4AB3FD	20 ms	Silver Nickel (AgNi)	88 VDC	6 A	11 VDC	Plug In	8.2 mA	Socketable	20 ms	4PDT (4 Form C)	168 W 1500 VA	Lighted Indicator	General Purpose	28 VDC 250 VAC	110 VDC	Non Latching	CE CSA GOST IECEE Lloyd's UL	13.44 kOhms	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC RXM4AB1ED	20 ms	Silver Nickel (AgNi)	38.4 VDC	6 A	4.8 VDC	Plug In	18.8 mA	Socketable	20 ms	4PDT (4 Form C)	168 W 1500 VA		General Purpose	28 VDC 250 VAC	48 VDC	Non Latching	CE CSA GOST IECEE Lloyd's UL	2560 Ohms	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC RXM4AB3B7	20 ms	Silver Nickel (AgNi)	19.2 VAC	5 A	3.6 VAC	Plug In	133.3 mA	Socketable	20 ms	4PDT (4 Form C)	140 W 1250 VA	Lighted Indicator	General Purpose	28 VDC 250 VAC	24 VAC	Non Latching	CE CSA GOST IECEE Lloyd's UL	180 Ohms	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC RXM4AB2ED	20 ms	Silver Nickel (AgNi)	38.4 VDC	6 A	4.8 VDC	Plug In	18.8 mA	Socketable	20 ms	4PDT (4 Form C)	168 W 1500 VA	Lighted Indicator Test Button	General Purpose	28 VDC 250 VAC	48 VDC	Non Latching	CE CSA GOST IECEE Lloyd's UL	2560 Ohms	-40 °C	55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.64
		10	$ 10.35
		25	$ 9.83
		50	$ 9.31
		100	$ 8.80
		250	$ 8.02
		500	$ 7.50
		1000	$ 7.32
Newark	Each	1	$ 17.53
		10	$ 16.81

Description

General part information

RXM4A Series

General Purpose Relay 4PDT (4 Form C) 12VDC Coil Socketable
