461-BG24H-SO

Active

Visual Communications Company - VCC

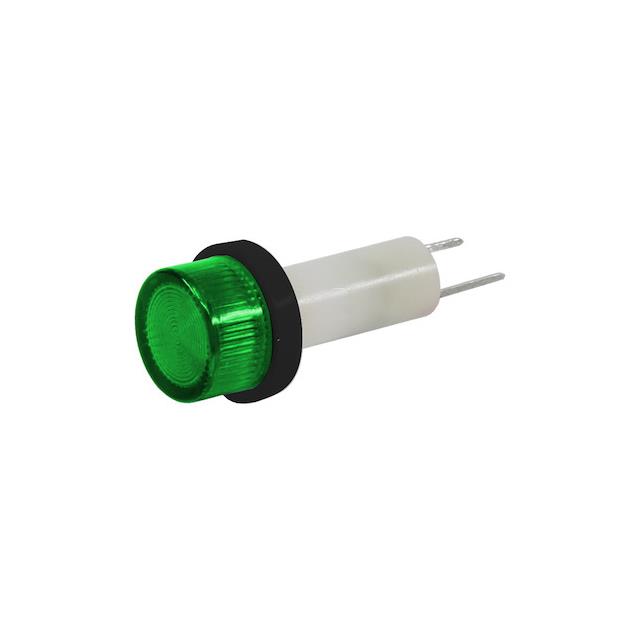

PMI RND .250" ED GREEN HIGH HAT

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

PMI RND .250" ED GREEN HIGH HAT

Technical Specifications

Parameters and characteristics for this part

Part	Panel Cutout Shape	Lens Size [diameter]	Viewing Angle	Lens Color	Millicandela Rating	Wavelength - Peak	Type	Lamp Color	Termination Style	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Transparency	Current	Ratings
Visual Communications Company - VCC 461-BG24H-SO	Round	9.91 mm	60 °	Smoke	10 mcd	565 nm	LED	Green	PC Pin	24 V	6.35 mm	0.25 "
Visual Communications Company - VCC 461-BG24H-CGO	Round	10 mm		Green			LED	Green	PC Pin	24 V	6.35 mm	0.25 "	Clear	17 mA	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 5.74

General part information

LED Panel Indicator Green 60° 24V 20mA PC Pin
