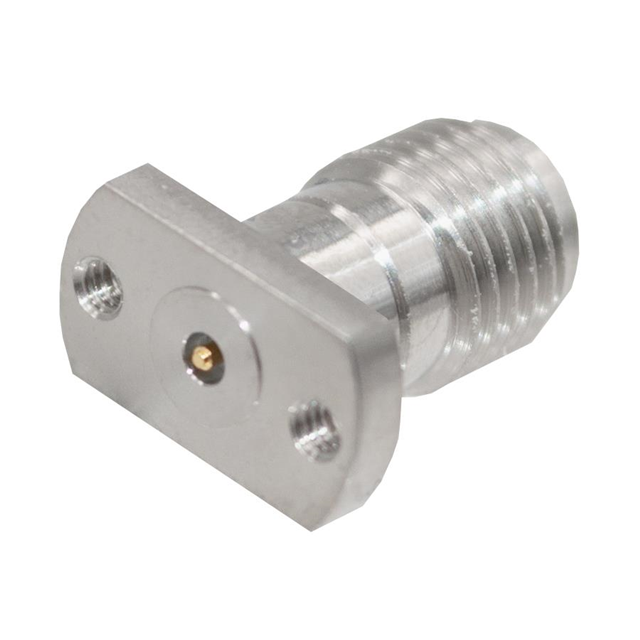

148-0701-202
ActiveCinch Connectivity Solutions Johnson
1.85MM JACK, PCB COMPRESSION MOU
Deep-Dive with AI
Search across all available documentation for this part.
148-0701-202
ActiveCinch Connectivity Solutions Johnson
1.85MM JACK, PCB COMPRESSION MOU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 148-0701-202 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 1.85 mm |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | Mounting Hardware |
| Frequency - Max [Max] | 67 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 44.44 | |
Description
General part information
148-0701 Series
1.85mm Connector Jack, Female Socket 50 Ohms Surface Mount Solder
