2201/18BK-1000

Active

Daburn Electronics

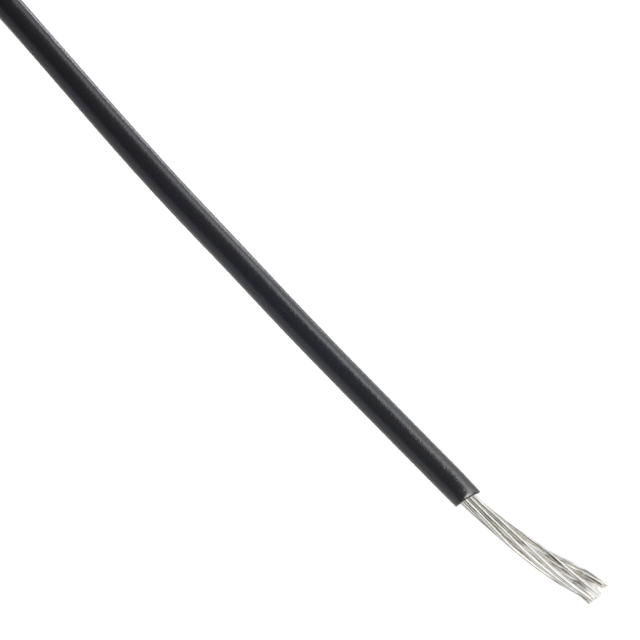

HOOK-UP STRND 18AWG BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2201/18BK-1000

Active

Daburn Electronics

HOOK-UP STRND 18AWG BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2201/18BK-1000

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	1.78 mm
Jacket (Insulation) Diameter [diameter]	0.07 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (XLPVC), Irradiated
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Qualification	MIL-W-16878 Type B
Ratings	UL Style 1429
Voltage	600 V
Wire Gauge	18 AWG

2201/18 Series

Part	Wire Gauge	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Qualification	Ratings	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Cable Type	Features	Voltage	Length	Length
Daburn Electronics 2201/18BU-101	18 AWG	Blue	19	30 AWG	0.25 mm	0.01 in	Copper Tinned	MIL-W-16878 Type B	UL Style 1429	30.5 m	100 ft	1.78 mm	0.07 "	105 ░C	-55 °C	Poly-Vinyl Chloride (XLPVC) Irradiated	Hook-Up	Abrasion Resistant	600 V
Daburn Electronics 2201/18YL-1000	18 AWG	Yellow	19	30 AWG	0.25 mm	0.01 in	Copper Tinned	MIL-W-16878 Type B	UL Style 1429			1.78 mm	0.07 "	105 ░C	-55 °C	Poly-Vinyl Chloride (XLPVC) Irradiated	Hook-Up	Abrasion Resistant	600 V	1000 ft	304.8 m
Daburn Electronics 2201/18BK-1000	18 AWG	Black	19	30 AWG	0.25 mm	0.01 in	Copper Tinned	MIL-W-16878 Type B	UL Style 1429			1.78 mm	0.07 "	105 ░C	-55 °C	Poly-Vinyl Chloride (XLPVC) Irradiated	Hook-Up	Abrasion Resistant	600 V	1000 ft	304.8 m
Daburn Electronics 2201/18BR-100	18 AWG	Brown	19	30 AWG	0.25 mm	0.01 in	Copper Tinned	MIL-W-16878 Type B	UL Style 1429	30.5 m	100 ft	1.78 mm	0.07 "	105 ░C	-55 °C	Poly-Vinyl Chloride (XLPVC) Irradiated	Hook-Up	Abrasion Resistant	600 V
Daburn Electronics 2201/18GY-100	18 AWG	Gray	19	30 AWG	0.25 mm	0.01 in	Copper Tinned	MIL-W-16878 Type B	UL Style 1429	30.5 m	100 ft	1.78 mm	0.07 "	105 ░C	-55 °C	Poly-Vinyl Chloride (XLPVC) Irradiated	Hook-Up	Abrasion Resistant	600 V
Daburn Electronics 2201/18OR-1000	18 AWG	Orange	19	30 AWG	0.25 mm	0.01 in	Copper Tinned	MIL-W-16878 Type B	UL Style 1429			1.78 mm	0.07 "	105 ░C	-55 °C	Poly-Vinyl Chloride (XLPVC) Irradiated	Hook-Up	Abrasion Resistant	600 V	1000 ft	304.8 m
Daburn Electronics 2201/18YL-100	18 AWG	Yellow	19	30 AWG	0.25 mm	0.01 in	Copper Tinned	MIL-W-16878 Type B	UL Style 1429	30.5 m	100 ft	1.78 mm	0.07 "	105 ░C	-55 °C	Poly-Vinyl Chloride (XLPVC) Irradiated	Hook-Up	Abrasion Resistant	600 V
Daburn Electronics 2201/18OR-100	18 AWG	Orange	19	30 AWG	0.25 mm	0.01 in	Copper Tinned	MIL-W-16878 Type B	UL Style 1429	30.5 m	100 ft	1.78 mm	0.07 "	105 ░C	-55 °C	Poly-Vinyl Chloride (XLPVC) Irradiated	Hook-Up	Abrasion Resistant	600 V
Daburn Electronics 2201/18WH-100	18 AWG		19	30 AWG	0.25 mm	0.01 in	Copper Tinned	MIL-W-16878 Type B	UL Style 1429	30.5 m	100 ft	1.78 mm	0.07 "	105 ░C	-55 °C	Poly-Vinyl Chloride (XLPVC) Irradiated	Hook-Up	Abrasion Resistant	600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.25

Description

General part information

2201/18 Series

18 AWG Hook-Up Wire 19/30 Black 600V 1000.0' (304.8m)
