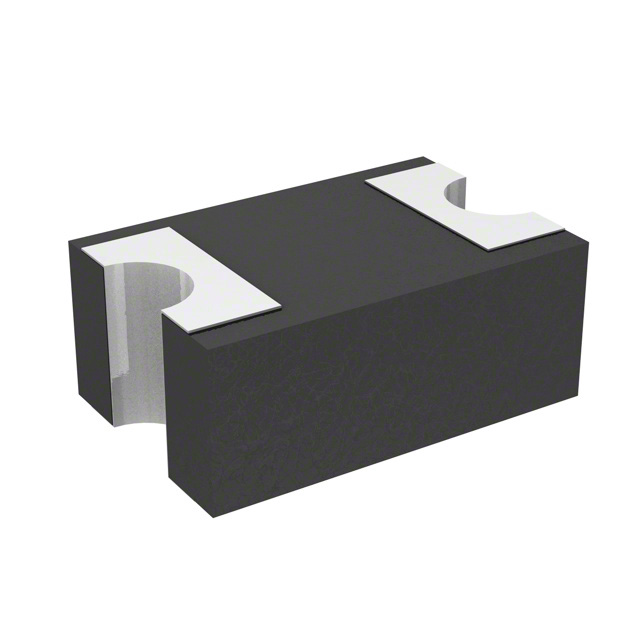

SD0805S040S1R0
ActiveKyocera AVX
DIODE SCHOTTKY 40V 1A 0805
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SD0805S040S1R0
ActiveKyocera AVX
DIODE SCHOTTKY 40V 1A 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SD0805S040S1R0 |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 50 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | 0805 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | 0805 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.26 | ||
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 6000 | $ 0.10 | |||
| 9000 | $ 0.09 | |||
| 15000 | $ 0.09 | |||
| 21000 | $ 0.09 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.08 | |||
Description
General part information
SD0805S04 Series
Diode 40 V 1A Surface Mount 0805
