0313862002

Active

Molex

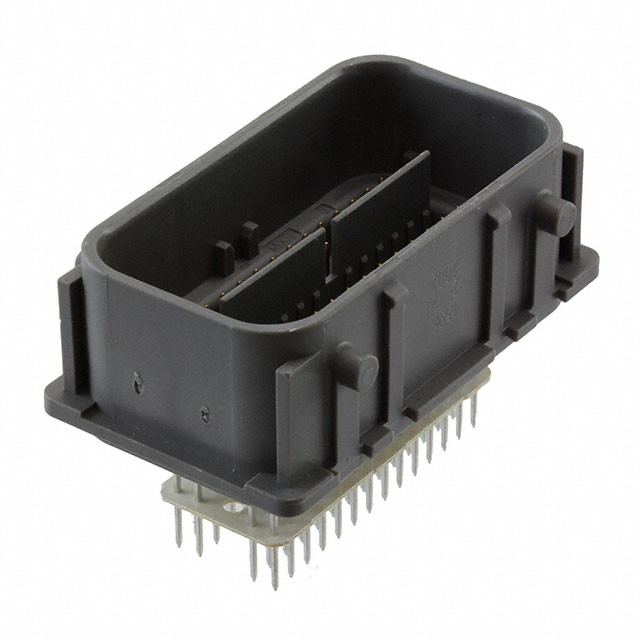

CONN HEADER VERT 56POS 2.54MM

Search across all available documentation for this part.

Active

Molex

CONN HEADER VERT 56POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	0313862002

Applications	Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	6.5 mm
Contact Length - Post [x]	0.256 in
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Gray
Insulation Height	21.54 mm
Insulation Height	0.848 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole
Number of Positions	56
Number of Positions Loaded	All
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Connector Type	Pitch - Mating	Pitch - Mating	Termination	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Color	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post [x]	Applications	Mounting Type	Number of Positions Loaded	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Style	Contact Type	Fastening Type	Insulation Material
Molex 0313862002	Header	0.1 in	2.54 mm	Solder	Square	30 Áin	0.76 Ám	Gold	Gray	21.54 mm	0.848 in	6.5 mm	0.256 in	Automotive	Through Hole	All	Tin	56	200 µin	5.08 µm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled
Molex 0313862001	Header	0.1 in	2.54 mm	Solder	Square			Gold	Blue	21.54 mm	0.848 in	6.5 mm	0.256 in	Automotive	Through Hole	All		56			Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 56 position 0.100" (2.54mm)
