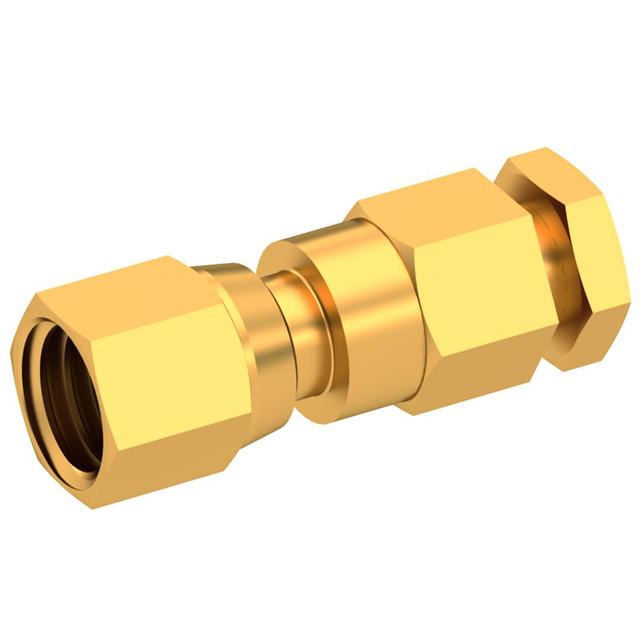

1002-1541-010

Active

Radiall USA, Inc.

SMC F STR SDCL .086

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC F STR SDCL .086

Technical Specifications

Parameters and characteristics for this part

Specification	1002-1541-010

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Cable Group	Connector Style	Mounting Type	Body Material	Frequency - Max [Max]	Mating Cycles	Dielectric Material	Connector Type	Number of Ports	Contact Termination	Body Finish	Shield Termination	Center Contact Plating	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Impedance	Center Contact Material
Radiall USA, Inc. 1002-1541-010	RG-405 (.085" Semi Rigid)	SMC	Free Hanging (In-Line)	Brass	10 GHz	500	Polytetrafluoroethylene (PTFE)	Female Socket Plug	1	Solder	Gold	Clamp	Gold	0.25 dB	-65 ░C	105 ░C	Gold	50 Ohms	Beryllium Copper
Radiall USA, Inc. 1002-1541-009		SMC	Free Hanging (In-Line)	Brass	10 GHz	500	Polytetrafluoroethylene (PTFE)	Female Socket Plug	1	Solder	Gold	Clamp	Gold	0.25 dB	-65 ░C	105 ░C	Gold	50 Ohms	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
