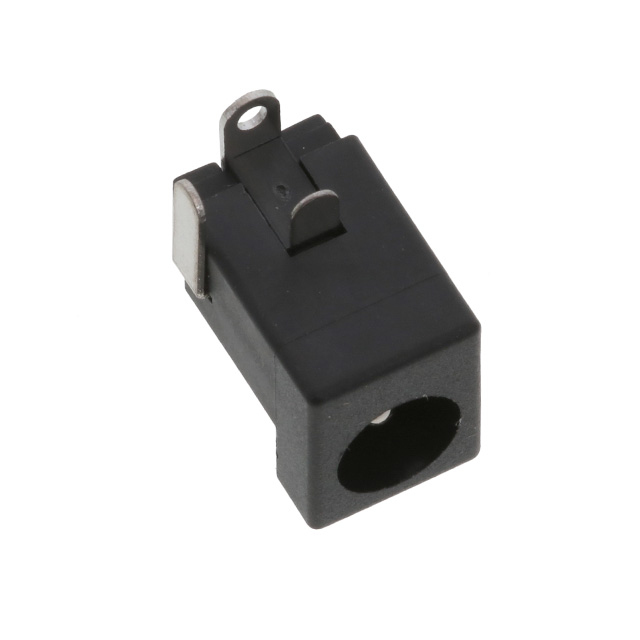

KLDHCX-0202-A

Active

Kycon, Inc.

POWER JACK, HIGH CURRENT 2.0MM D

Search across all available documentation for this part.

Active

Kycon, Inc.

POWER JACK, HIGH CURRENT 2.0MM D

Technical Specifications

Parameters and characteristics for this part

Specification	KLDHCX-0202-A

Actual Diameter [diameter]	0.252 ", 0.079 in
Actual Diameter [diameter]	2 mm, 6.4 mm
Body Color	Black
Connector Type	Jack
Contact Material	Brass, Phosphor Bronze
Contact Material - Plating	Tin
Current Rating (Amps)	5 A
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Shielding	Unshielded
Termination	Solder
Voltage - Rated	24 VDC

Part	Actual Diameter [diameter]	Actual Diameter [diameter]	Current Rating (Amps)	Voltage - Rated	Contact Material - Plating	Number of Positions/Contacts	Termination	Connector Type	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Gender	Material Flammability Rating	Mounting Type	Shielding	Body Color	Housing Material	Internal Switch(s)	Contact Material	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]
Kycon, Inc. KLDHCX-0202-A	0.079 in 0.252 "	2 mm 6.4 mm	5 A	24 VDC	Tin	2 Conductors 3 Conductors	Solder	Jack	0.079 in 0.217 "	2 mm 5.5 mm	Male	UL94 V-0	Through Hole Right Angle	Unshielded	Black	Polybutylene Terephthalate (PBT)	Normally Closed Single Switch	Brass Phosphor Bronze
Kycon, Inc. KLDHCX-0202-AP-LT			5 A	24 VDC	Tin	2 Conductors 3 Conductors	Solder	Jack	0.079 in 0.217 "	2 mm 5.5 mm	Male	UL94 V-0	Through Hole Right Angle	Unshielded	Black	Polybutylene Terephthalate (PBT)	Normally Closed Single Switch	Brass Phosphor Bronze	2 mm	0.224 in	5.7 mm	0.079 "
Kycon, Inc. KLDHCX-0202-B	0.079 in 0.252 "	2 mm 6.4 mm	5 A	24 VDC	Tin	2 Conductors 3 Conductors	Solder	Jack	0.079 in 0.217 "	2 mm 5.5 mm	Male	UL94 V-0	Through Hole Right Angle	Unshielded	Black	Polybutylene Terephthalate (PBT)	Normally Closed Single Switch	Brass Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole, Right Angle
