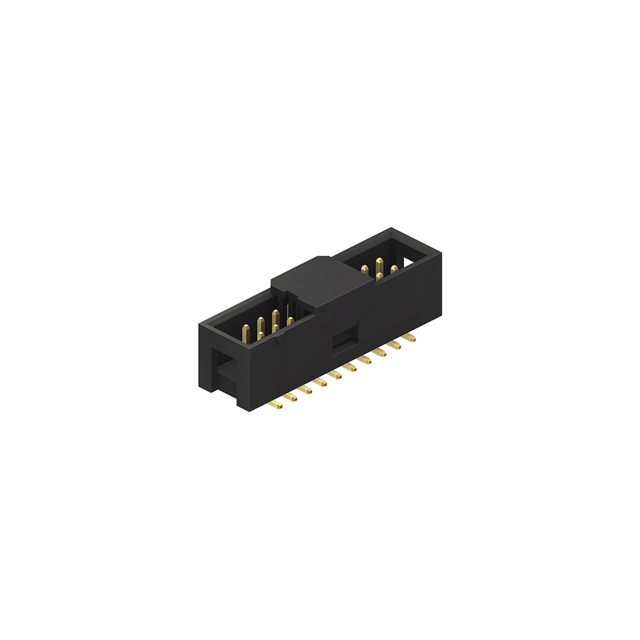

3020-20-0300-00-TR

Active

CnC Tech, LLC

CONN HEADER SMD 20POS 2.54MM

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN HEADER SMD 20POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	3020-20-0300-00-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Finish Thickness - Mating	Contact Finish - Mating	Shrouding	Contact Finish Thickness - Post	Style	Number of Positions	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Voltage Rating	Fastening Type	Features	Connector Type	Material Flammability Rating	Contact Finish - Post	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Insulation Color	Termination	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mounting Type	Insulation Material	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)
CnC Tech, LLC 3020-20-0100-00	Flash	Gold	Shrouded - 4 Wall	Flash	Board to Cable/Wire	20	All	0.1 in	2.54 mm	250 VAC	Push-Pull	Keying Slot	Header	UL94 V-0	Gold	Brass	0.118 in	3 mm	9 mm	0.354 in	Black	Solder	Square	-40 °C	105 ░C	Male Pin	Through Hole	Nylon 9T Polyamide (PA9T)	2	2.54 mm	0.1 in	3 A
CnC Tech, LLC 3020-20-0300-00	Flash	Gold	Shrouded - 4 Wall	Flash	Board to Cable/Wire	20	All	0.1 in	2.54 mm		Push-Pull	Keying Slot	Header	UL94 V-0	Gold	Brass			9 mm	0.354 in	Black	Solder	Square	-40 °C	105 ░C	Male Pin	Surface Mount	Nylon 9T Polyamide (PA9T)	2	2.54 mm	0.1 in	3 A
CnC Tech, LLC 3020-20-0300-00-TR	Flash	Gold	Shrouded - 4 Wall	Flash	Board to Cable/Wire	20	All	0.1 in	2.54 mm		Push-Pull	Keying Slot Pick and Place	Header	UL94 V-0	Gold	Copper Alloy			9 mm	0.354 in	Black	Solder	Square	-40 °C	105 ░C	Male Pin	Surface Mount	Nylon 9T Polyamide (PA9T)	2	2.54 mm	0.1 in	3 A
