581-01-30-011

Active

Cinch Connectivity Solutions Trompeter

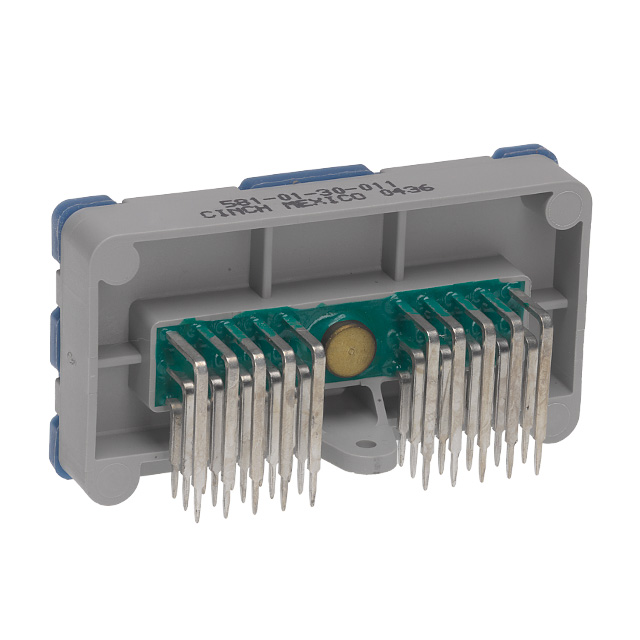

CONN HEADER R/A 30POS

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN HEADER R/A 30POS

Technical Specifications

Parameters and characteristics for this part

Specification	581-01-30-011

Applications	Automotive
Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Length - Post	4.22 mm
Contact Length - Post	0.166 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	10 A
Ingress Protection	IP69K, IP67
Insulation Color	Gray
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Type	Contact Termination	Number of Positions	Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Features	Number of Rows	Note	Applications	Current Rating (Amps)	Number of Positions Loaded	Style	Insulation Material	Contact Finish - Mating	Ingress Protection	Contact Finish - Post	Insulation Color	Contact Length - Post	Contact Length - Post	Termination	Contact Material	Contact Shape	Shrouding
Cinch Connectivity Solutions Trompeter 581-01-30-027	Female Socket	Crimp	30	Gray	85 °C	-40 °C	Receptacle	Free Hanging (In-Line)	IP67/IP69K	3	Contacts Not Included
Cinch Connectivity Solutions Trompeter 581-01-30-030	Female Socket	Crimp	30	Natural	85 °C	-40 °C	Receptacle	Free Hanging (In-Line)	IP67/IP69K	3	Contacts Not Included
Cinch Connectivity Solutions Trompeter 581-01-30-031	Female Socket	Crimp	30	Natural	85 °C	-40 °C	Receptacle	Free Hanging (In-Line)	IP67/IP69K	3	Contacts Not Included
Cinch Connectivity Solutions Trompeter 581-01-30-011	Male Pin		30		125 °C	-40 °C	Header	Through Hole Right Angle		3		Automotive	10 A	All	Board to Cable/Wire	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Tin-Lead	IP67 IP69K	Tin-Lead	Gray	4.22 mm	0.166 in	Solder	Brass	Square	Shrouded - 4 Wall
