1836793

Active

Phoenix Contact

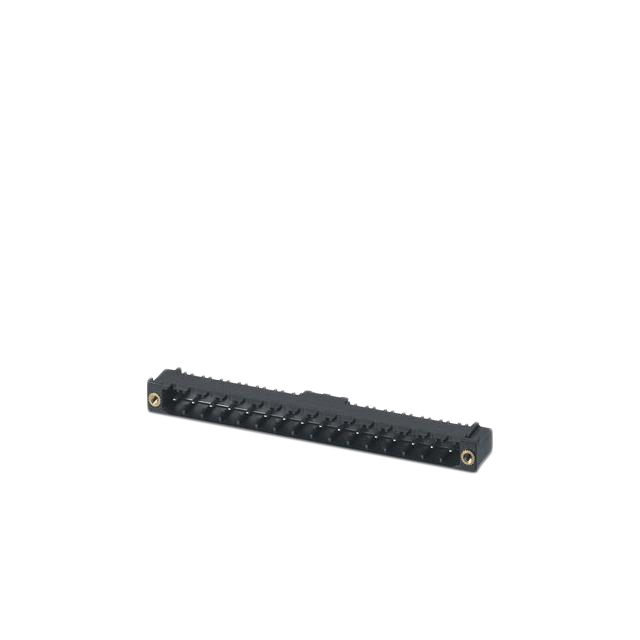

PLUGGABLE TERMINAL BLOCKS CC 2,5/13-GFLRP20THR

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS CC 2,5/13-GFLRP20THR

Technical Specifications

Parameters and characteristics for this part

Specification	1836793

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	0.079 in
Contact Tail Length	2 mm
Current - IEC	12 A
Current - UL	16 A
Features	Mating and Mounting Flange
Header Orientation	90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	13
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	13
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	320 V
Voltage - UL	300 V

RF Inductors - SMD CERAMIC RF CHIP 1nH Tol0.3nH TIN

Part	Header Orientation	Voltage - UL	Contact Tail Length	Contact Tail Length	Contact Material	Number of Positions	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Mating Finish	Number of Levels	Voltage - IEC	Type	Current - UL	Housing Material	Positions Per Level	Mounting Type	Features	Current - IEC	Color	Pitch [x]	Pitch [x]
Phoenix Contact 1836793	90° Right Angle	300 V	0.079 in	2 mm	Copper Alloy	13	Solder	100 °C	-40 °C	UL94 V-0	Tin	1	320 V	Header Male Pins Shrouded (4 Side)	16 A	Liquid Crystal Polymer (LCP)	13	Through Hole	Mating and Mounting Flange	12 A	Black	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.55
Sager	N/A	50	$ 18.30
		100	$ 17.66
