11FLH-SM1-TB

Active

JST Sales America Inc.

CONN FPC TOP 11POS 0.5MM R/A

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN FPC TOP 11POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	11FLH-SM1-TB

Actuator Material	Polyamide (PA66), Nylon 6/6
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Copper Alloy
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	0.047 "
Height Above Board	1.2 mm
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	11
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Termination	Connector/Contact Type	Material Flammability Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Contact Finish	Current Rating (Amps)	Flat Flex Type	Features	FFC, FCB Thickness	Mounting Type	Locking Feature	Height Above Board	Height Above Board	Housing Material	Cable End Type	Number of Positions	Voltage Rating	Actuator Material
JST Sales America Inc. 11FLH-SM1-TB	Solder	Contacts Top	UL94 V-0	Copper Alloy	-25 °C	85 °C	0.5 mm	0.02 in	Tin	0.5 A	FPC	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	Surface Mount Right Angle	Slide Lock	0.047 "	1.2 mm	Liquid Crystal Polymer (LCP)	Tapered	11	50 V	Nylon 6/6 Polyamide (PA66)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.62

General part information

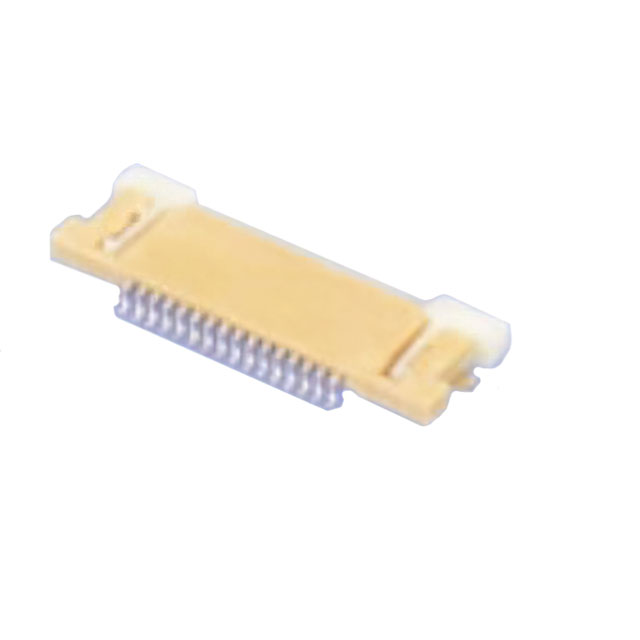

11 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
